Stoplamp Switch
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

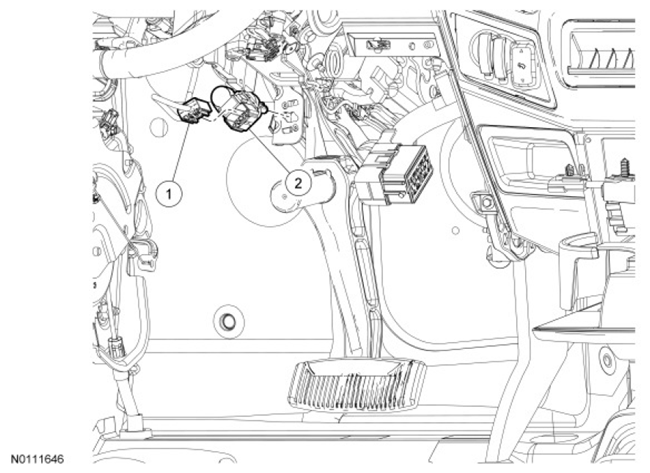

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Stoplamp switch electrical connector (part of 14A005) |
| 2 | 13480-A | Stoplamp switch |
NOTE:
Do not press or pull on the brake pedal when installing or removing the stoplamp switch, otherwise misadjustment or damage to the stoplamp switch can occur.
- Disconnect the stoplamp switch electrical connector.
- Rotate the stoplamp switch clockwise approximately one-eighth turn to remove the stoplamp switch.
- To install, reverse the removal procedure.
