Headlamp Switch

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

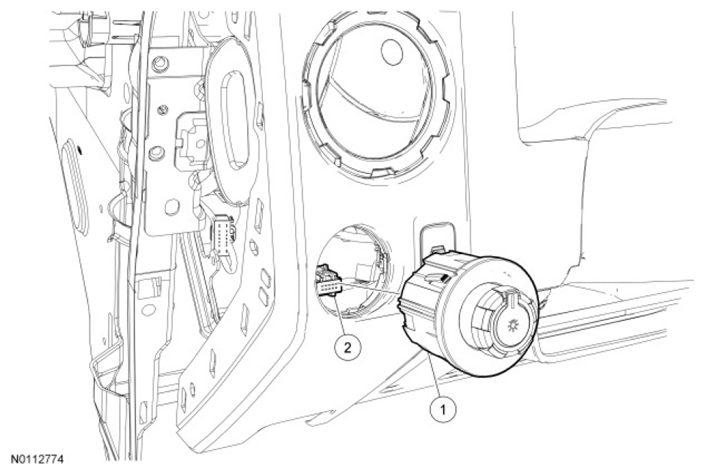

Fig 1: Identifying Headlamp Switch With Electrical Connector

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	11654	Headlamp switch
2	-	Headlamp switch electrical connector (part of 14401)

Remove the instrument panel side finish panel for access to the headlamp retaining tabs.
