Circuit Deactivation Ignition Module (CDIM): Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

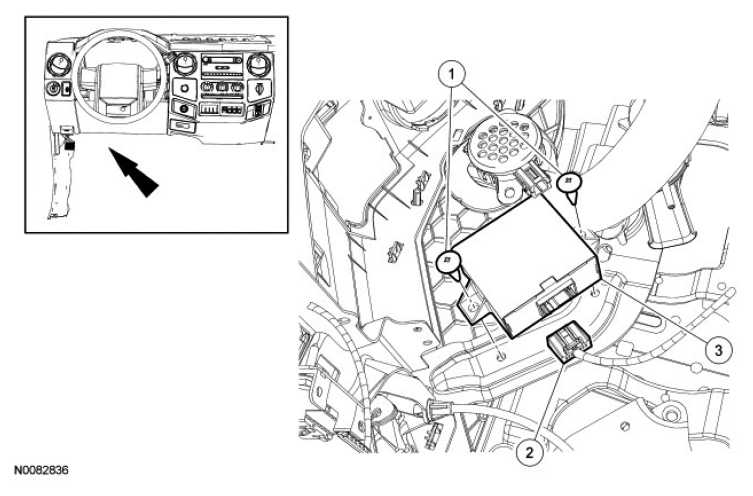

Fig 1: Locating Circuit Deactivation Ignition Module (CDIM)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W706350	Pin-type retainers (2 required)
2	-	Circuit Deactivation Ignition Module (CDIM) electrical connector (part of 14401)
3	12C527	CDIM
