3.7L 4V Mks/Mkt
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2013 Lincoln Navigator, 2013 Lincoln MKZ, 2013 Lincoln MKX, 2013 Lincoln MKT, and 2013 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
SENSORS/INPUTS - 3.7L 4V MKS/MKT

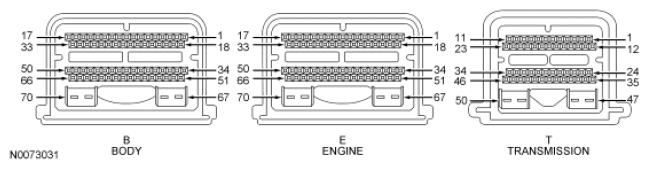

| Sensors/Inputs | PCM Pin/PID Only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| KOEO | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| BOO1 | B13 | OFF | ON | OFF | OFF | ON/OFF |
| AAT | B17 | 3.71/5 (41) | 3.71/5 (41) | 3.78/4 (39.2) | 3.81/3 (37.4) | VOLTS/DEG C (DEG F) |
| APP1 | B28 | 0.78 | 0.78 | 0.98 | 1.09 | VOLTS |
| APP2 | B29 | 0.39 | 0.39 | 0.50 | 0.56 | VOLTS |
| ACP_PRESS | B31 | 0.93/65.54 | 0.94/66.70 | 0.87/58.58 | 0.85/55.97 | VOLTS/PS I |
| FPM | B32 | 59.67 (H) | 59.67 (H) | 59.67 (H) | 60.31 (H) | % |
| BOO2 | B46 | OFF | ON | OFF | OFF | ON/OFF |
| IAT | B47 | 2.87/26 (78.80) | 3.58/13 (55.40) | 3.74/10 (50.0) | 3.88/6 (42.80) | VOLTS/DEG C (DEG F) |
| B+ | B62 | 12.51 | 13.81 | 14.24 | 14.72 | VOLTS |
| FTP | B65 | 2.66/0.01/0.308 | 2.53/-0.02/-0.62 | 1.87/-0.19/-5.27 | 2.36/-0.06/-1.75 | VOLTS/PS I/in-H 2 O |
| O2S11_CUR | E23 | (I) | switching | switching | switching | mA/uA |
| O2S21_CUR | E24 | (I) | switching | switching | switching | mA/uA |
| CHT | E39 | 3.82/85 (185.0) | 0.70/84 (183.20) | 0.65/86 (186.80) | 0.60/88 (190.40) | VOLTS/DEG C (DEG F) |
| TP1 | E41 | 4.09/17.64 | 4.26/12.54 | 4.22/15.29 | 4.19/16.07 | VOLTS/% |
| TP2 | E58 | 1.23/24.7 | 0.70/13.72 | 0.99/19.60 | 1.03/20.78 | VOLTS/% |
| O2S12 | T29 | (I) | (D) | (D) | (D) | VOLTS |
| O2S22 | T40 | (I) | (D) | (D) | (D) | VOLTS |
| APP | PID | 0.00 | 0.00 | 11.5 | 6.5 | % |
| APP1 (APP_D) | PID | 15.68 | 15.68 | 19.6 | 21.56 | % |
| APP2 (APP_E) | PID | 7.84 | 7.84 | 9.8 | 10.98 | % |
| APP_MAXDIFF | PID | 0 | 0 | 0 | 0 | % |
| BARO | PID | 13.19/148.79 | 13.19/148.79 | 13.19/148.79 | 13.63/151.53 | PSI/Hz |
| BRKOVR_ACTION | PID | 0 | 0 | 0 | 0 | km/Miles |
| BRKOVRD_POSS | PID | 0 | 0 | 0 | 0 | km/Miles |
| DECHOKE | PID | YES | NO | NO | NO | YES/NO |
| DIST_BRKOVRD | PID | 0 | 0 | 0 | 0 | km/Miles |
| EONV_RDY | PID | NOT READY | NOT READY | NOT READY | NOT READY | READY/NOT READY |
| ETC_ACT | PID | 7.95 | 1.25 | 9.03 | 8.20 | Degrees |
| ETC_DSD | PID | 8.06 | 1.27 | 9.18 | 8.23 | Degrees |
| GEAR | PID | 1 | 1 | 5 | 6 | GEAR |
| IACKAM2 | PID | -0.25 | -0.13 | -0.22 | -0.22 | NUMERIC VALUE |
| INJPWR_M | PID | 12.52 | 14.11 | 14.16 | 14.18 | VOLTS |
| LOAD | PID | 0.00 (I) | 33.33 | 36.07 | 68.23 | % |
| MAF | PID | 0.00 | 3.15 | 7.98 | 17.75 | g/s |
| MAF | PID | 693.75 | 1.63k | 2.56k | 3.46k | Hz |
| MIL_DIS | PID | 0 | 0 | 0 | 0 | Miles |
| MISFIRE | PID | NO | NO | NO | NO | YES/NO |
| O2S11_IMPED | PID | 5.00 | 0.09 | 0.09 | 0.09 | VOLTS |
| O2S21_IMPED | PID | 5.00 | 0.09 | 0.09 | 0.09 | VOLTS |
| RPM | PID | 0 | 604 | 1125 | 1530 | RPM |
| SYNC | PID | NO | YES | YES | YES | YES/NO |
| VCT_EXH_ACT1 | PID | 0.00 | 0.00 | 18.68 | 49.25 | Degrees |
| VCT_EXH_ACT2 | PID | 0.00 | -0.25 | 18.98 | 49.25 | Degrees |
| VCT_INT_ACT1 | PID | 0.00 | 0.00 | -9.81 | -11.37 | Degrees |
| VCT_INT_ACT2 | PID | 0.00 | 0.00 | -9.81 | -11.31 | Degrees |
| VCTSYS | PID | OPEN LOOP | CLOSED LOOP | CLOSED LOOP | CLOSED LOOP | OPEN/CLOSED LOOP |
| VSS | PID | 0 | 0 | 48 km/h (30 MPH) | 89 km/h (55 MPH) | km/h / MPH |
ACTUATORS/OUTPUTS - 3.7L 4V MKS/MKT
| Actuators/Outputs | PCM Pin/PID Only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| KOEO | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| EVAPCV | B20 | 0.00 | 0.00 | 0.00 | 0.00 | % |
| FP | B62 | OFF | ON | ON | ON | ON/OFF |
| EVAPCP | E32 | 0.00 | 34.97 | 32.15 | 34.51 | % |
| HTR11 | E69 | OFF | ON | ON | ON | ON/OFF |
| O2S11_HTR | E69 | 0.00 | 34.90 | 31.37 | 31.76 | % |
| HTR21 | E70 | OFF | ON | ON | ON | ON/OFF |
| O2S21_HTR | E70 | 0.00 | 34.11 | 30.98 | 31.37 | % |
| HTR12 | T49 | OFF | ON | ON | ON | ON/OFF |
| HTR22 | T48 | OFF | ON | ON | ON | ON/OFF |
| CLRDIST | PID | 0.00 | 0.00 | 0.00 | 0.00 | MILES |
| GRILL_A_CMD | PID | VARYING | OPEN | VARYING | CLOSED | POSITION |
| GRILL_CMDCAL | PID | YES | NO | NO | NO | YES/NO |
| EGR_EVAL | PID | YES | YES | YES | YES | YES/NO |
| EVAP_EVAL | PID | NO | NO | NO | NO | YES/NO |
| EVAPSTA | PID | NOT RUNNING | NOT RUNNING | NOT RUNNING | NOT RUNNING | STATUS |
| FUELSYS | PID | OPEN LOOP | CLOSED LOOP | CLOSED LOOP | CLOSED LOOP | OPEN/CLOSED LOOP |
| LONGFT1 | PID | 3.12 (I) | -20 TO +20 | -20 TO +20 | -20 TO +20 | % |
| LONGFT2 | PID | 3.90 (I) | -20 TO +20 | -20 TO +20 | -20 TO +20 | % |
| MIL | PID | OFF | OFF | OFF | OFF | ON/OFF |
| O2S_EVAL | PID | NO | NO | NO | NO | YES/NO |
| O2SHTR_EVAL | PID | NO | NO | NO | NO | YES/NO |
| RPMDSD | PID | 875 | 600 | 600 | 600 | RPM |
| SHRTFT1 | PID | 0 (I) | -10 TO +10 | -10 TO +10 | -10 TO +10 | % |
| SHRTFT2 | PID | 0 (I) | -10 TO +10 | -10 TO +10 | -10 TO +10 | % |
| SPARKADV | PID | 10.00 | 10.75 | 33.25 | 38.00 | DEG |
OTHER - 3.7L 4V MKS/MKT
| Other | PCM Pin/PID Only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| KOEO | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| VPWR | B52/66 | 12 | 13-14 | 13-14 | 13-14 | VOLTS |
| VREF | B67/68 | 5 | 5 | 5 | 5 | VOLTS |
