3.5L 4VF-150
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2013 Lincoln Navigator, 2013 Lincoln MKZ, 2013 Lincoln MKX, 2013 Lincoln MKT, and 2013 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
SENSORS/INPUTS - 3.5L 4VF-150

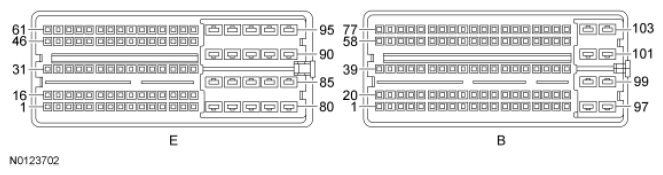

| Sensors/Inputs | PCM Pin/PID Only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| KOEO | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| FPM | B27 | 60.39 | 60.39 | 59.40 | 59.40 | % |
| CAC_T | B32 | 51 (123.8) | 25 (77.0) | 14 (57.2) | 14 (57.2) | DEGC (DEG F) |
| CAC_V | B32 | 1.72 | 3.02 | 3.52 | 3.55 | VOLTS |
| APP2 | B54 | 0.40/7.84 | 0.40/7.84 | 0.56/10.98 | 0.58/11.37 | VOLTS/% |
| APP1 | B55 | 0.80/16.7 | 0.80/16.7 | 1.11/9.0 | 1.15/11.0 | VOLTS/% |
| O2S12 | B57 | (I) | (D) | (D) | (D) | VOLTS |
| BOO1 | B66 | OFF | OFF | OFF | OFF | ON/OFF |
| FTP | B73 | 2.63/0 | 2.66/0 | 2.63/0 | 2.37/-0.06 | VOLTS/PS I |
| FTP_H20 | B73 | 0.103 | 0.275 | 0.103 | -1.689 | in-H 2 O |
| TIP_PRS_BOOST | B74 | 99.3/14.41 | 99.5/14.44 | 100.2/14.54 | 115.6/16.77 | kPa/PSI |
| TIP_PRES_V | B74 | 1.56 | 1.56 | 1.56 | 1.79 | VOLTS |
| IAT | B75 | 1.61/53 (127.4) | 3.35/17 (62.6) | 3.71/10 (51.8) | 3.69/10 (51.8) | VOLTS/DEG C (DEG F) |
| BOO2 | B93 | OFF | OFF | OFF | OFF | ON/OFF |
| VCT_EXH_ACT2 | E17 | 0 | 0.06 | 46.00 | 42.06 | DEG |
| VCT_INT_ACT1 | E1 | 0 | 0.18 | -0.56 | -0.81 | DEG |
| VCT_INT_ACT2 | E18 | 0 | -0.12 | 0.25 | 0.31 | DEG |
| VCT_EXH_ACT1 | E29 | 0 | -0.06 | 48.25 | 41.93 | DEG |
| CHT | E36 | 3.27/89 (192.2) | 3.18/92 (197.6) | 3.48/80 (176.0) | 2.96/91 (195.8) | VOLTS/DEG C (DEG F) |
| O2S11_CUR | E62 | (I) | switching (C) | switching (C) | switching (C) | uA |
| APP | PID | 0 | 0 | 4.5 | 13 | % |
| B+ | PID | VBAT | VBAT | VBAT | VBAT | VOLTS |
| BARO | PID | 3.97 | 3.93 | 3.93 | 3.93 | VOLTS |
| BRKOVRD_POSS | PID | 45 | 45 | 45 | 45 | NUMERIC VALUE |
| BRKOVR_ACTION | PID | 0 | 0 | 0 | 0 | NUMERIC VALUE |
| DECHOKE | PID | YES | NO | NO | NO | YES/NO |
| DIST_BRKOVRD | PID | 391.3 (243.16) | 391.3 (243.16) | 361.3 (224.53) | 362.8 (225.46) | KM (MILES) |
| EQ_RAT11 | PID | 0 | 14.56 | 14.37 | 14.88 | RATIO |
| EQ_RAT21 | PID | 0 | 14.83 | 14.84 | 14.61 | RATIO |
| ETC_TRIM | PID | 0.18 (J) | 0.13 (J) | 0.17 (J) | 0.17 (J) | DEG |
| FLI | PID | 93.72 (H) | 93.72 (H) | 92.54 (H) | 93.72 (H) | % |
| INJPWR_M | PID | 0 | 0 | 0 | 0 | VOLTS |
| LOAD | PID | (I) | 33.33 | 32.94 | 56.86 | % |
| MIL_DIS | PID | 0 | 0 | 0 | 0 | Miles |
| MISFIRE | PID | NO | NO | NO | NO | YES/NO |
| MP_LRN | PID | YES | YES | YES | YES | YES/NO |
| O2S11_IMPED | PID | 4.93 | 1 | 1 | 1 | VOLTS |
| O2S21_IMPED | PID | 4.93 | 1 | 1 | 1 | VOLTS |
| RPM | PID | 0 | 653 | 1260 | 1357 | RPM |
| SYNC | PID | NO | YES | YES | YES | YES/NO |
| VCT_EXH_DIF1 | PID | 0 | 0.06 | -9.68 | 0.50 | DEG |
| VCT_EXH_DIF2 | PID | 0 | -0.06 | -7.37 | 0.31 | DEG |
| VCT_EXH_DSD | PID | 0 | 0 | 38.56 | 42.43 | DEG |
| VCT_INT_DIF1 | PID | 0 | -0.12 | 0.37 | 0.68 | DEG |
| VCT_INT_DIF2 | PID | 0 | 0 | -0.25 | -0.37 | DEG |
| TIP_PRS_DSD | PID | 99.8/14.48 | 99.8/14.48 | 99.6/14.46 | 114.1/16.56 | kPa/PSI |
| VSS | PID | 0 | 0 | 48 km/h (30 MPH) | 89 km/h (55 MPH) | km/h / MPH |
ACTUATORS/OUTPUTS - 3.5L 4VF-150
| Actuators/Outputs | PCM Pin/PID Only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| KOEO | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| HTR12 | B1 | OFF | ON | ON | ON | ON/OFF |
| HTRCM12 | B1 | 0 | 609 | 854 | 854 | A/mA |
| EVAPCP | B22 | 0 | 11.79 | 67.58 | 59.08 | % |
| FP | B39 | 75 | 27.93 | 28.01 | 28.07 | % |
| HTR22 | B61 | OFF | ON | ON | ON | ON/OFF |
| O2S11_HTR | E15 | 0 | 1.00 | 36.86 | 33.33 | % |
| TURBO_WGATE | E16 | 0 | 0 | 0 | 6.75 | % |
| CAT_EVAL | PID | YES | YES | NO | NO | YES/NO |
| EGR_EVAL | PID | YES | YES | NO | NO | YES/NO |
| EVAP020C | PID | NO | NO | NO | NO | YES/NO |
| EVAPCV | PID | OFF | OFF | OFF | OFF | %/ON/OFF |
| EVAPSOAK | PID | YES | YES | YES | YES | YES/NO |
| EVAPSTA | PID | NOT RUNNING | NOT RUNNING | NOT RUNNING | NOT RUNNING | STATUS |
| EVAP_EVAL | PID | NO | NO | NO | NO | YES/NO |
| FUELSYS | PID | OPEN LOOP | CLOSED LOOP | CLOSED LOOP | CLOSED LOOP | OPEN/CLOSED LOOP |
| F_VCV | PID | 0 | 4.94 | 14.18 | 16.01 | %- VARYING |
| HFC | PID | OFF | OFF | OFF | OFF | % |
| LFC | PID | OFF | OFF | OFF | OFF | % |
| LONGFT1 | PID | (I) | -20 TO +20 | -20 TO +20 | -20 TO +20 | % |
| LONGFT2 | PID | (I) | -20 TO +20 | -20 TO +20 | -20 TO +20 | % |
| O2S_EVAL | PID | YES | YES | YES | NO | YES/NO |
| O2SHTR_EVAL | PID | YES | YES | YES | NO | YES/NO |
| RPMDSD | PID | 875 | 655 | 580 | 634 | RPM |
| SHRTFT1 | PID | (I) | -10 TO +10 | -10 TO +10 | -10 TO +10 | % |
| SHRTFT2 | PID | (I) | -10 TO +10 | -10 TO +10 | -10 TO +10 | % |
| SPARKADV | PID | 10.00 | -3.00 | 36.25 | 22.25 | DEG |
| TURBO_BPASS | PID | OFF | OFF | OFF | OFF | ON/OFF |
| TURBO_BPASS_2 | PID | OFF | OFF | OFF | OFF | ON/OFF |
| VCT_EXH_DC1 | PID | 0 | 0 | 29.80 | 43.79 | % |
| VCT_EXH_DC2 | PID | 0 | 0 | 31.35 | 43.11 | % |
| VCT_INT_DC1 | PID | 0 | 0 | -0.56 | -0.81 | % |
| VCT_INT_DC2 | PID | 0 | 0 | 0.25 | 0.31 | % |
| VCT_INTK_DSD | PID | 0 | 0 | 0.25 | 0.31 | DEG |
OTHER - 3.5L 4VF-150
| Other | PCM Pin/PID Only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| KOEO | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| VPWR | B101/B102/B103 | VBAT | VBAT | VBAT | VBAT | VOLTS |
| VREF | B11/B52/E8 | 5 | 5 | 5 | 5 | VOLTS |
