Drive Pinion Flange and Drive Pinion Seal: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTION
| 2 Jaw Puller 205-D072 (D97T-4221-A) or equivalent |
|
| Holding Fixture, Drive Pinion Flange 205-126 (T78P-4851-A) |
|
| Installer, Drive Pinion Flange 205-285 (T88T-4851-A) |
|
| Installer, Drive Pinion Oil Seal 205-208 (T83T-4676-A) |
|
| Remover, Bushing 307-001 (TOOL-1175-AC) |
|
| Slide Hammer 100-001 (T50T-100-A) |
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| SAE 75W-90 Synthetic Axle Lubricant XY-75W90-QLS |
DANA ES-PM-M2013 and GL-5 |

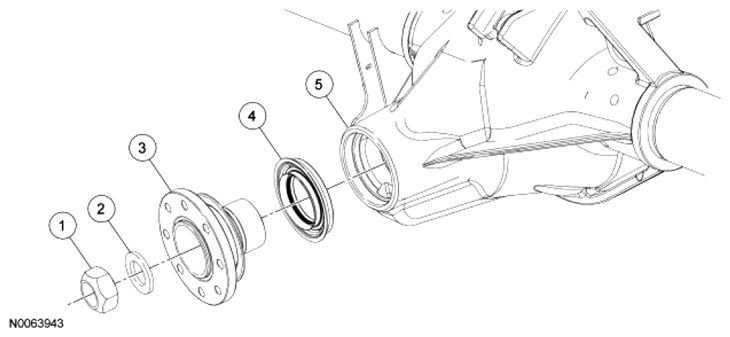

| Item | Part Number | Description |
|---|---|---|
| 1 | 354845 | Drive pinion nut |
| 2 | 4329 | Drive pinion washer |
| 3 | 4851 | Drive pinion flange |
| 4 | 4676 | Drive pinion seal |
| 5 | 4010 | Rear axle housing |
