Wheel Bearing and Wheel Hub: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. Position the wheel bearing and wheel hub in a vise with protective caps and install the 4 studs using 2 mounting nuts.

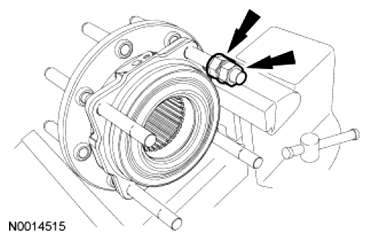

    Fig 1: Locating Wheel Bearing And Wheel Hub Studs Or Mounting Nuts
    G06776373Courtesy of FORD MOTOR CO.
  2. NOTE: Any time the wheel bearing and wheel hub are removed for any reason, a new O-ring seal must be installed. Failure to do so can cause a vacuum leak and loss of Four-Wheel Drive (4WD) operations.

    Install a new wheel bearing and wheel hub O-ring seal.

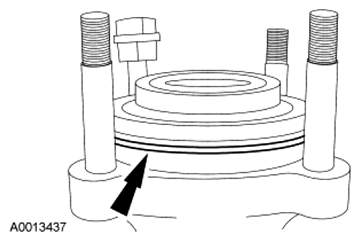

    Fig 2: Locating Wheel Bearing And Wheel Hub O-Ring Seal
    G06776313Courtesy of FORD MOTOR CO.

    Vehicles with ABS

  3. Position the wheel speed sensor and install the bolt.
    • Tighten to 18 Nm (159 lb-in).

    All vehicles

  4. If removed, position the brake disc shield.
  5. NOTE: Apply a coat of grease to the O-ring area of the wheel bearing and wheel hub before installation.

    Position the wheel bearing and wheel hub and install the 4 new nuts.

    • Tighten to 180 Nm (133 lb-ft).

    All vehicles

  6. Install the axle shaft snap ring.
  7. NOTE: Any time the hublock is removed, a new O-ring seal must be installed. Failure to do so can cause a vacuum leak and loss of 4WD functions.

    Install a new hublock O-ring seal.

  8. NOTE: The service replacement kit includes 2 O-ring seals; one for testing the hublock assembly and one for reassembly into the wheel hub. DO NOT REUSE O-RING SEALS or hublock failure may occur.
    NOTE: Always check the vacuum leak rate of the wheel end assembly when repairing or diagnosing the axle, wheel end or hublock performance.

    Install a new hublock gasket, then install the hublock in the following sequence.

    1. Rotate the hublock dial clockwise to the lock position. Apply the specified grease to the inner and outer splines.
    2. Insert the hublock into the wheel hub while slowly turning the wheel hub to align the splines. Lift/jiggle the axle U-joint while pushing the hublock into the wheel hub.
  9. Install new hublock screws. Rotate the dial to the counterclockwise position (free/auto) and confirm that the wheel hub turns free of the axle shaft.
    • Tighten to 6 Nm (53 lb-in).
  10. NOTE: Make sure that the wheel hub and brake disc mounting surfaces are clean and free of foreign material or excessive runout and/or vibration may occur.

    Position the brake disc onto the wheel hub noting the position of the index mark.

  11. Position the brake caliper and anchor plate assembly and install the bolts.
    • F-250 and F-350, tighten to 225 Nm (166 lb-ft).
    • F-450 and F-550, tighten to 400 Nm (295 lb-ft).

    Vehicles with DRW

  12. Position the wheel extension and install the new nuts.
    • Tighten to 176 Nm (130 lb-ft).

    Vehicles with ABS

  13. Install the wheel speed sensor harness-to-wheel knuckle bolt.
    • Tighten to 15 Nm (133 lb-in).
  14. Install the 2 wheel speed sensor harness-to-axle bolts.
    • Tighten to 15 Nm (133 lb-in).

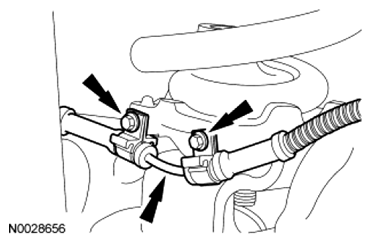

      Fig 3: Locating Wheel Speed Sensor Harness Bolts
      G06776312Courtesy of FORD MOTOR CO.
  15. Connect the wheel speed sensor harness to the frame.

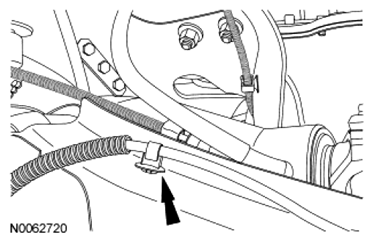

    Fig 4: Locating Wheel Speed Sensor Harness
    G06776370Courtesy of FORD MOTOR CO.
