Track Bar: Removal
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

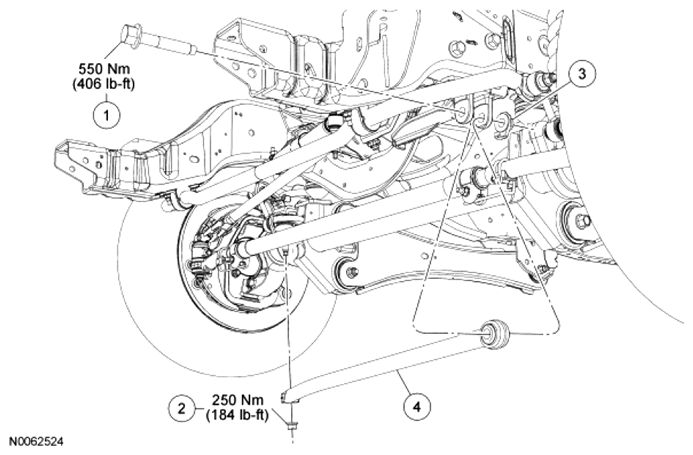

| Item | Part Number | Description |
|---|---|---|
| 1 | W706345 | Track bar-to-frame bolt |
| 2 | N807659 | Track bar ball joint nut |
| 3 | W520117 | Track bar-to-frame nut |
| 4 | 3B239 | Track bar |
NOTE:
Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result in major service expense. They must be replaced with the same part number or an equivalent part if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
-
NOTE: To prevent the front suspension from shifting when the track bar is removed, the front axle must be supporting the vehicle weight.
Load the front suspension with the vehicle weight.
- Position a jackstand under both sides of the front axle assembly.
- Lower the vehicle until the front axle is supporting the vehicle weight.
- Remove the track bar-to-frame nut and bolt and disconnect the track bar.
- Discard the nut and bolt.
-
NOTE: First loosen the nut, then use the hex-holding feature to prevent the track bar ball joint from turning while removing the nut.
Remove and discard the track bar ball joint nut.
-
NOTE: It may be necessary to rotate the track bar forward before installing the Steering Arm Remover.

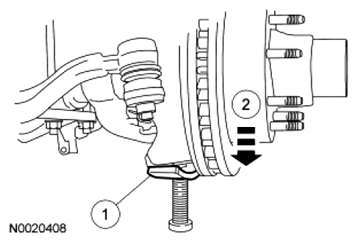

Using the Steering Arm Remover, disconnect the track bar from the ball joint and remove the track bar.
