Ball Joint: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel spindle or wheel knuckle assembly. For additional information, refer to WHEEL SPINDLE - F-250, F-350  or WHEEL KNUCKLE - F-450, F-550 .
  2. Remove the lower ball joint grease plug.
    Fig 1: Locating Lower Ball Joint Grease Plug
    G06136788Courtesy of FORD MOTOR CO.
  3. Position the wheel spindle in a vise and remove the snap ring from the lower ball joint.
  4. NOTE: To avoid damage to the components, do not use heat to aid ball joint removal.

    Using the C-Frame and Screw Installer/Remover and Ball Joint Installer/Remover, remove the lower ball joint.

    Fig 2: Removing Lower Ball Joint
    G06136789Courtesy of FORD MOTOR CO.
  5. Using the C-Frame and Screw Installer/Remover and Ball Joint Installer/Remover, remove the upper ball joint.

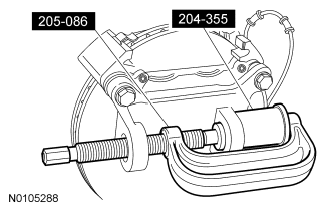

    Fig 3: Removing Upper Ball Joint
    G06597322Courtesy of FORD MOTOR CO.
