Axle - F-450, F-550: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

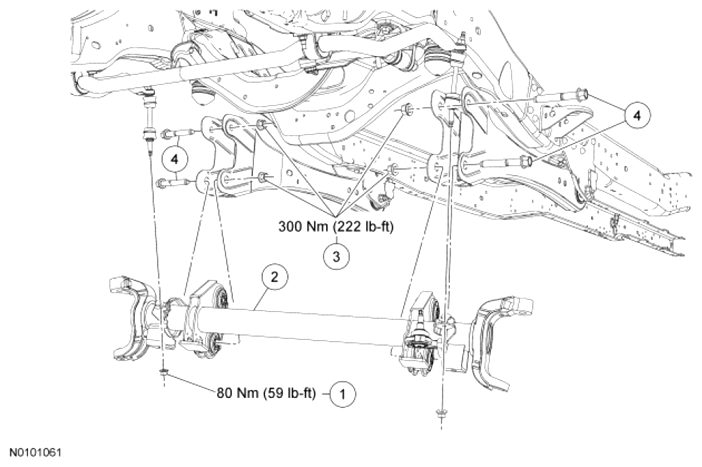

Fig 1: Axle Related Replacement Components With Torque Specifications -- F-450, F-550

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N807144	Stabilizer bar link nut (2 required)
2	3001	Axle assembly
3	W709860	Radius arm front nuts (4 required)
4	N807659	Radius arm front bolts (4 required)
