Turbocharger Inlet Pipes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

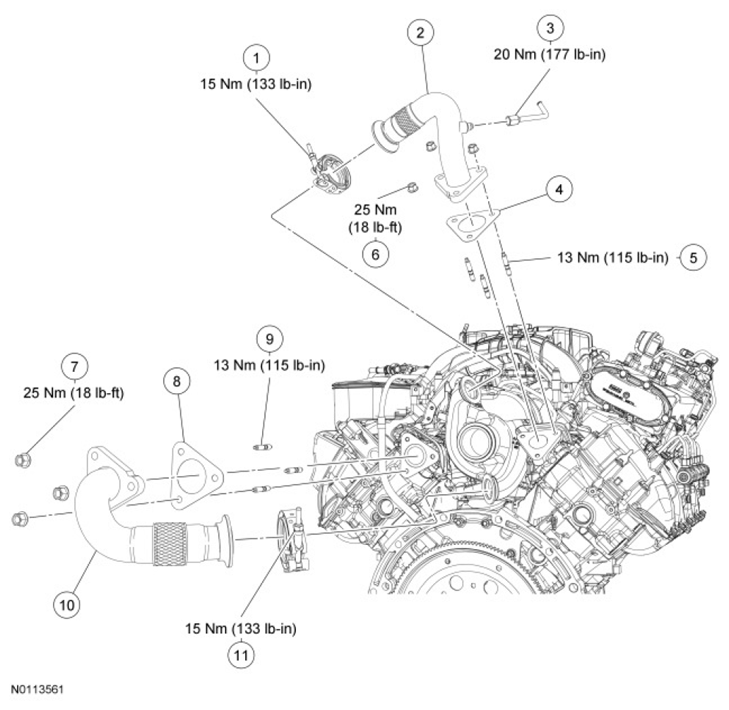

NOTE:
Vehicle body removed from art for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9W622 | RH turbocharger inlet pipe clamp |
| 2 | 9G437 | RH turbocharger inlet pipe |
| 3 | 9F459 | Exhaust Pressure (EP) sensor flare nut |
| 4 | 9L462 | RH turbocharger inlet pipe gasket |
| 5 | W714851 | RH turbocharger inlet pipe stud (3 required) |
| 6 | W711402 | RH turbocharger inlet pipe nut (3 required) |
| 7 | W711402 | LH turbocharger inlet pipe nut (3 required) |
| 8 | 9L462 | LH turbocharger inlet pipe gasket |
| 9 | W714851 | LH turbocharger inlet pipe stud (3 required) |
| 10 | 9G437 | LH turbocharger inlet pipe |
| 11 | 9W622 | LH turbocharger inlet pipe clamp |
- Refer to the procedures and/or exploded views in this article for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
