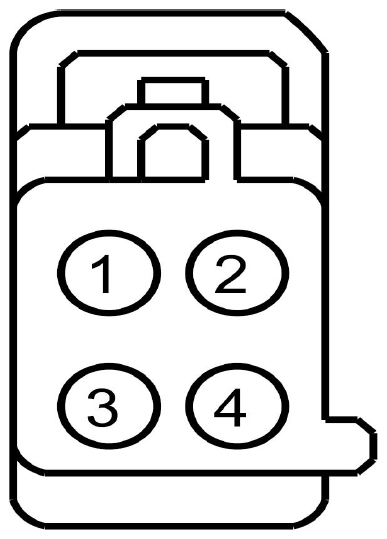

Third Row Power-Stow Seat Motor, Right Connector End View (C4182)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPSB4 (YE-BU) | 16 | CTRL MOD. - SEAT ADJUST. REAR RIGHT STOW DOWN | late production |
| 1 | CPS71 (GN-VT) | 14 | CTRL MOD. - SEAT ADJUST. REAR RIGHT STOW DOWN | early production |
| 2 | LPS77 (YE-GY) | 20 | CTRL MOD. - 3RD ROW REAR RIGHT SEAT SENSOR STOW | early production |
| 2 | LPSB5 (GN-WH) | 20 | CTRL MOD. - 3RD ROW REAR RIGHT SEAT SENSOR STOW | late production |
| 3 | CPSB3 (BU-OG) | 16 | CTRL MOD. - SEAT ADJUST. REAR RIGHT STOW UP | late production |
| 3 | CPS72 (WH-OG) | 14 | CTRL MOD. - SEAT ADJUST. REAR RIGHT STOW UP | early production |
| 4 | RPS77 (BN-GN) | 20 | CTRL MOD. - 3RD ROW REAR RIGHT SEAT SENSOR FOLD/STOW RETURN | early production |
| 4 | RPSB5 (WH-BU) | 20 | CTRL MOD. - 3RD ROW REAR RIGHT SEAT SENSOR FOLD/STOW RETURN | late production |
| Available Pigtail Kits | |
|---|---|

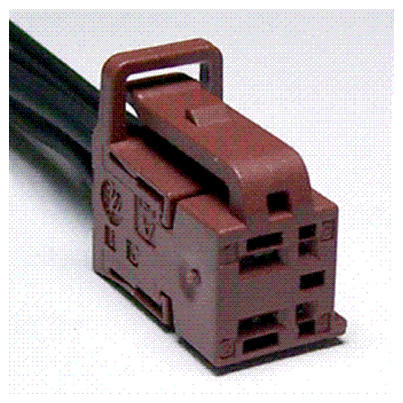

| Pigtail Kit Part Number WPT-1191 | Service Part Number: BU2Z-14S411-AEA Gauge: 14 18 Pin material: Tin (greased) Cavities: 4 Vehicle Uses
|
