Third Row Power Seat Latch, Left Connector End View (C4243)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

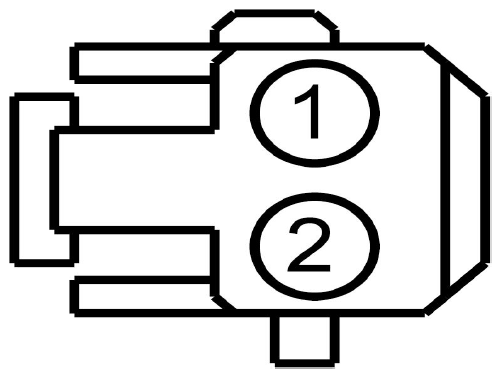

Fig 1: Identifying Left Third Row Power Seat Latch Connector End View (C4243)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPSB9 (VT-BN)	16	CTRL MOD. - 3RD ROW REAR LEFT LATCH MOTOR
2	CPSA9 (VT-OG)	16	CTRL MOD. - 3RD ROW REAR LATCH MOTOR RETURN
