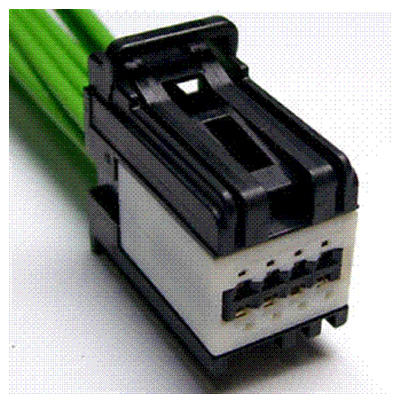

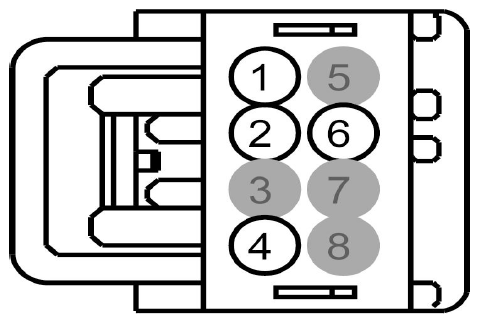

Tire Pressure Monitor (TPM) Module Connector End View (C2415)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 2 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 3 | * | * | Not Used | |
| 4 | SBP26 (YE-RD) | 22 | FUSE - 26 OR CIRCUIT BREAKER | |
| 5 | * | * | Not Used | |
| 6 | GD214 (BK-BU) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1183 | Service Part Number: BU2Z-14S411-AGA Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses
|
