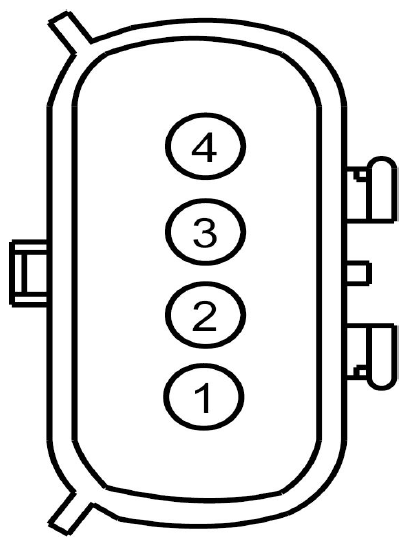

Grille Flashing Led, Left Connector End View (C1826)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
VAP08 (BN) |
20 |
LOUDSPEAKER - POLICE + |
|
| 2 |
CAP14 (GY-BN) |
20 |
POLICE - BUTTON FUNCTION 1 |
|
| 3 |
CAP06 (GY-OG) |
20 |
POLICE - WIGWAG SYNC |
|
| 4 |
GD123 (BK-GY) |
20 |
GROUND - FENDER FRONT RIGHT |
|
