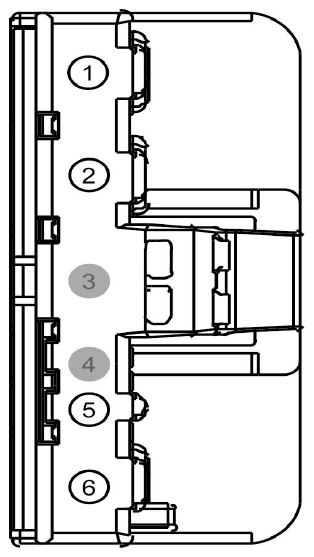

Auxiliary Blower Motor Control Connector End View (C3002)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VHA19 (BN) | 12 | CTRL MOD. - REAR BLOWER # BLOWER OUT | |
| 2 | CHA02 (BN-GN) | 12 | RELAY - AUX. BLOWER | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | VHA25 (BN-VT) | 22 | CTRL MOD. - REAR CLIMATE # REAR BLOWER CONTROL | |
| 6 | GD149 (BK-GY) | 12 | GROUND - PILLAR D LEFT |
