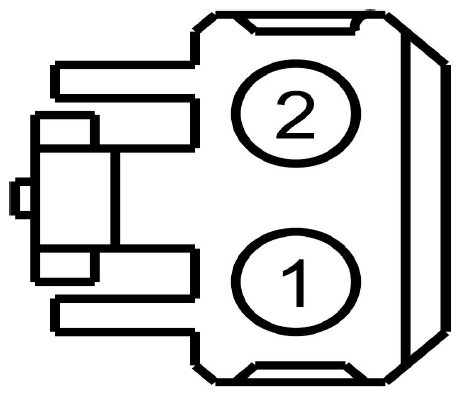

Auxiliary Blower Motor Connector End View (C3021)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VHA19 (BN) | 12 | CTRL MOD. - REAR BLOWER # BLOWER OUT | |
| 2 | CHA02 (BN-GN) | 12 | RELAY - AUX. BLOWER |

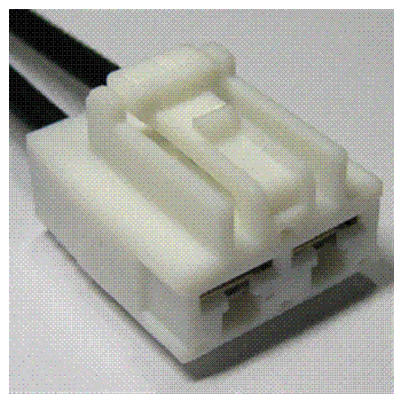

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1134 | Service Part Number: BU2Z-14S411-HA Gauge: Pin material: Tin Cavities: 2 Vehicle Uses
|
