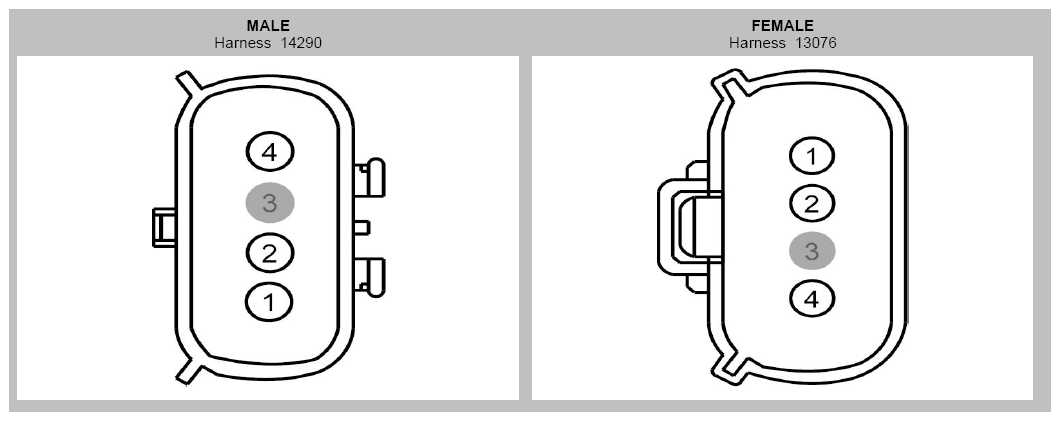

Inline Connector End View (C1704)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
GD123 (BK-GY) |
16 |
14290 |
| 1 |
GD123 (BK-GY) |
20 |
13076 |
| 2 |
CAP14 (GY-BN) |
20 |
|
| 3 |
* |
* |
13076 |
| 3 |
RAP08 (GN-BU) |
16 |
14290 |
| 4 |
VAP08 (BN) |
16 |
14290 |
| 4 |
VAP08 (BN) |
20 |
13076 |
