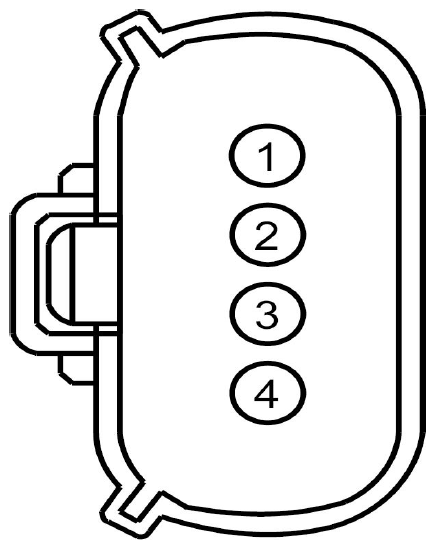

Headlamp Assembly, Left Connector End View (C1284A)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CLF04 (BN-BU) | 20 | CTRL MOD. - BEAM LOW LEFT | |
| 2 | SBB57 (RD) | 20 | FUSE - 57 OR CIRCUIT BREAKER | |
| 3 | CLF02 (GY-BN) | 20 | CTRL MOD. - BEAM HIGH LEFT | |
| 4 | GD120 (BK-GN) | 18 | GROUND - FENDER FRONT LEFT |
| Available Pigtail Kits | |
|---|---|

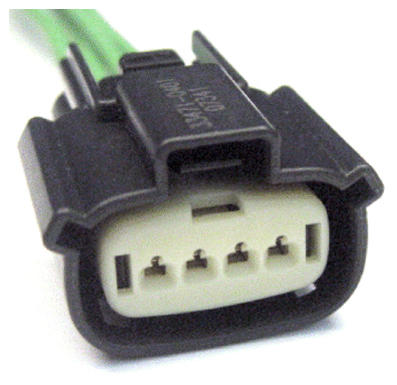

| Pigtail Kit Part Number WPT-925 | Service Part Number: 8U2Z-14S411-TA Gauge: 14 Pin material: Silver Cavities: 4 Vehicle Uses
|
