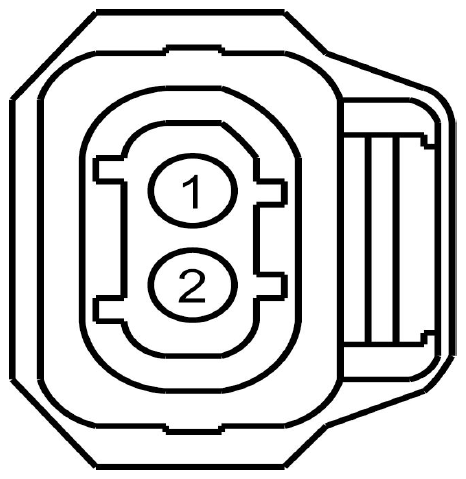

Fuel Injector 2 Connector End View (C1182)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * (BN) | 14 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ2) | 3.5L GTDI |
| 1 | CE206 (GY-YE) | 18 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ2) | 2.0L GTDI |
| 2 | RE206 (BU-OG) | 18 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ2RTN) | 2.0L GTDI |
| 2 | * (BK) | 14 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ2RTN) | 3.5L GTDI |
| Available Pigtail Kits | |
|---|---|

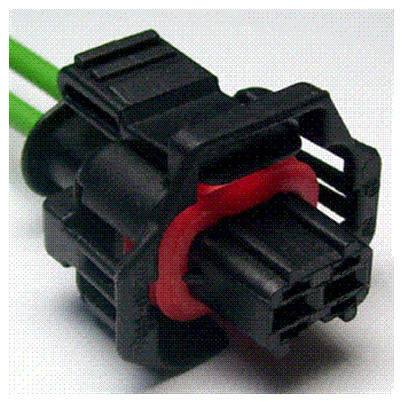

| Pigtail Kit Part Number WPT-1302 | Service Part Number: CU2Z-14S411-ARA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses
|
