Electronic Throttle Control (Etc) Connector End View (C1609B)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

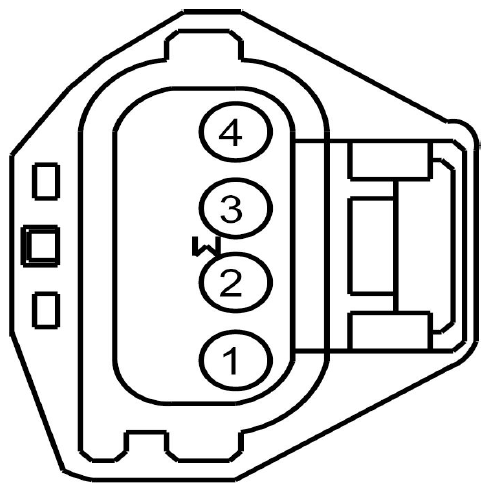

Fig 1: Identifying Electronic Throttle Control Connector End View (C1609B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	VE819 (GN-VT)	20	SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2)
2	LE134 (YE)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)
3	RE134 (BU-OG)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)
4	VE818 (BN)	20	SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1)

Available Pigtail Kits

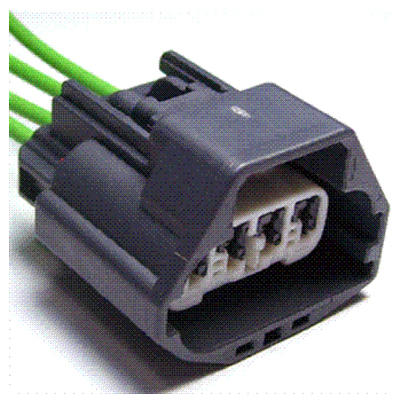

Pigtail Kit Part Number WPT-992	Service Part Number: 3U2Z-14S411-UB Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses Motor - Electronic Throttle Control (ETC) Sensor - Fuel Rail Temperature Sensor - Fuel Tank Pressure Transducer Sensor - Manifold Absolute Pressure (MAP) Sensor - Manifold Pressure/Intake Temperature Sensor - Throttle Position

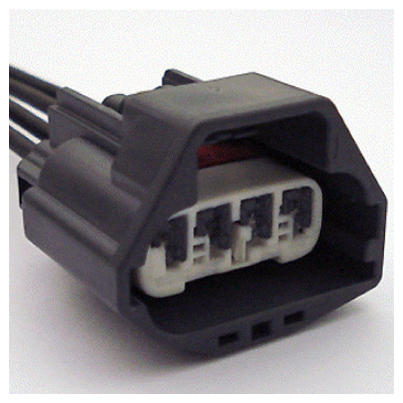

Pigtail Kit Part Number WPT-1293	Service Part Number: 3U2Z-14S411-UC Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses Control - Electronic Throttle Sensor - Fuel Rail Temperature Sensor - Fuel Tank Pressure Transducer Sensor - Manifold Absolute Pressure (MAP) Sensor - Manifold Pressure/Intake Temperature Sensor - Throttle Position
