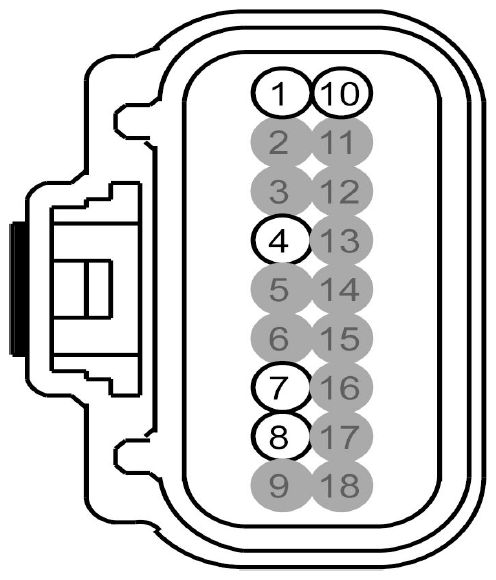

Cruise-Control Module (C-Cm) Connector End View (C1582)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBB79 (WH-RD) | 20 | FUSE - 79 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT LEFT | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 8 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 9 | * | * | Not Used | |
| 10 | CBB91 (BN) | 20 | FUSE - 91 OR CIRCUIT BREAKER | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used |

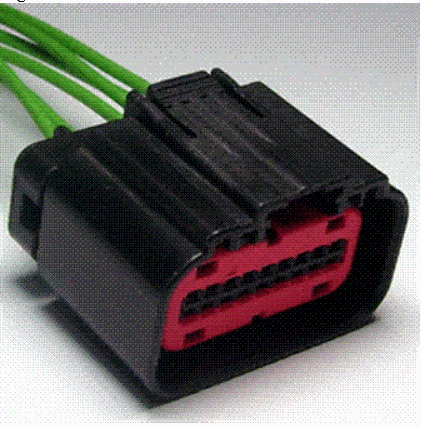

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1342 | Service Part Number: CU2Z-14S411-GA Gauge: 20 Pin material: Silver Cavities: 18 Vehicle Uses
|
