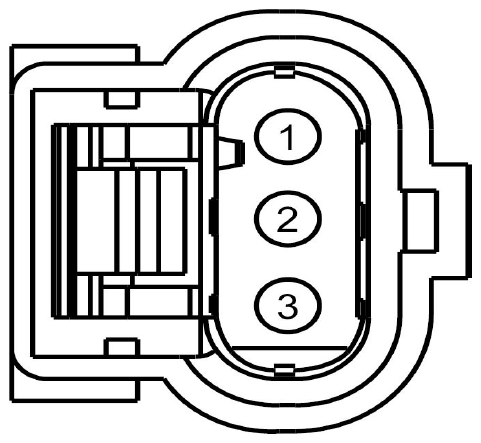

Crankshaft Position (CKP) Sensor Connector End View (C1120)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VE711 (YE-VT) | 18 | SENSOR - CRANKSHAFT POSITION (CKP) | |
| 2 | RE406 (GY-VT) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) | |
| 3 | LE423 (GN-VT) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) |

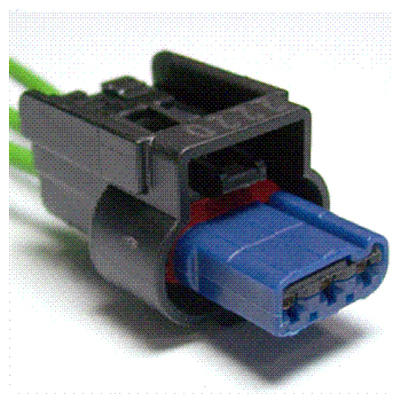

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1202 | Service Part Number: BU2Z-14S411-ARA Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses
|
