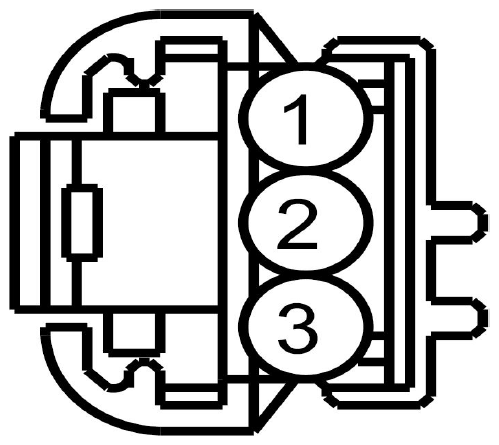

Rail Lamp, RH Side Connector End View (C942)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VLN33 (GY-VT) | 20 | CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE) | |
| 2 | GD233 (BK) | 20 | GROUND - COWL SIDE/PILLAR A LEFT | |
| 3 | CLN09 (YE-GN) | 20 | RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) |

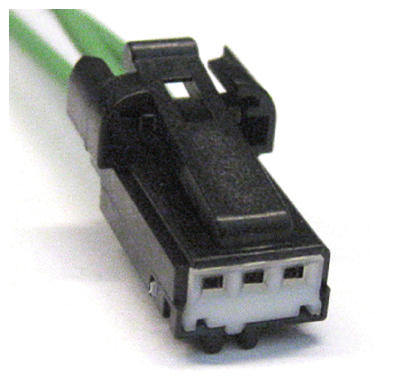

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-911 | Service Part Number: 8U2Z-14S411-LA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses
|
