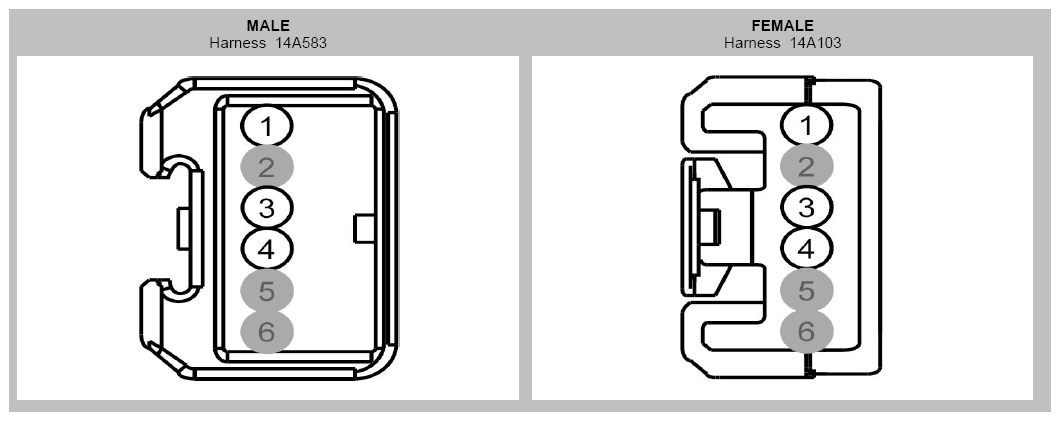

Inline Connector End View (C913)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CAP10 (BN-VT) |
18 |
14A103 |
| 1 |
CAP10 (BN-VT) |
20 |
14A583 |
| 2 |
* |
* |
|
| 3 |
CAP14 (GY-BN) |
22 |
|
| 4 |
GD347 (BK-VT) |
18 |
14A103 |
| 4 |
GD347 (BK-VT) |
20 |
14A583 |
| 5 |
* |
* |
|
| 6 |
* |
* |
|
