Inline Connector End View (C432)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

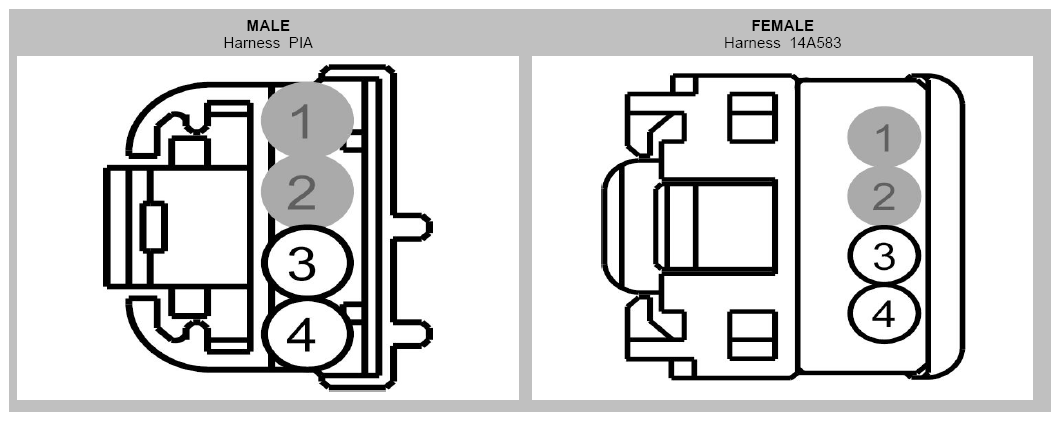

Fig 1: Identifying Inline Connector End View (C432)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	*	*
2	*	*
3	CPL45 (BN)	*	PIA
3	CPL45 (BN)	22	14A583
4	GD349 (BK-GY)	*	PIA
4	GD349 (BK-GY)	22	14A583

Available Pigtail Kits

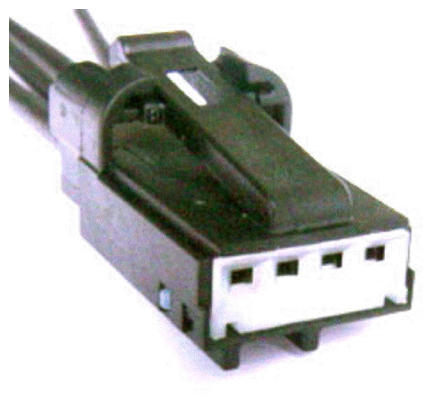

Pigtail Kit Part Number WPT-874	Service Part Number: 6U2Z-14S411-JA Gauge: 18 Pin material: Tin Cavities: 4 Vehicle Uses: Relay - Oil Level Sensor - Compass Sensor - Turbine Shaft Speed Sensor - Turbo Intake Pressure/Temperature

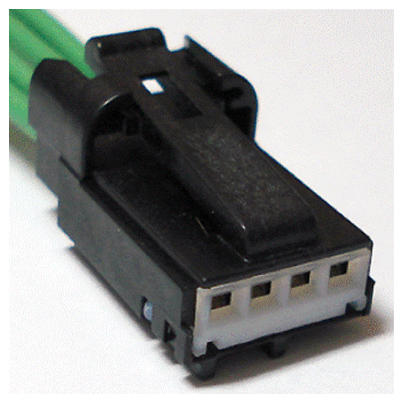

Pigtail Kit Part Number WPT-982	Service Part Number: 6U2Z-14S411-JB Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses: Module - Auto Lamps Module - Front Interface Sensor - EATC In Car Temperature Sensor - Sunload Solenoid - Brake Shift Park Interlock Switch - Door Lock (LH) Switch - Door Lock (RH)
