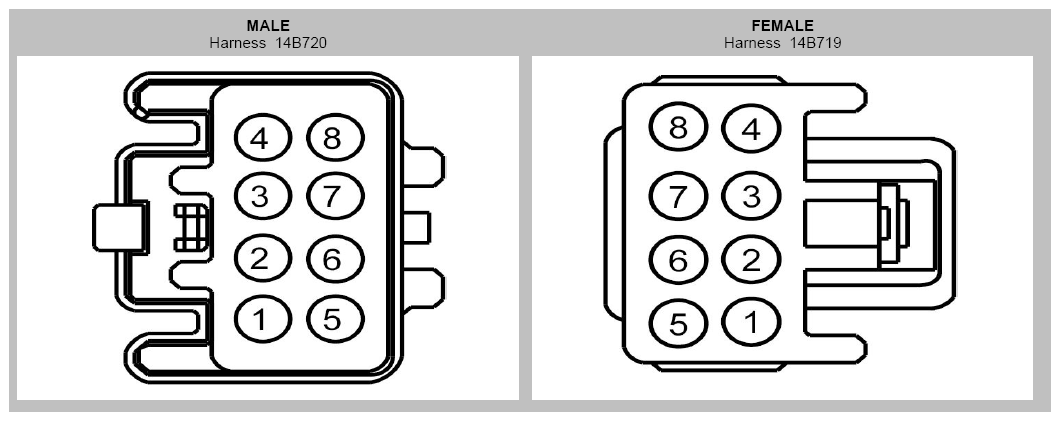

Inline Connector End View (C422)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CPS04 (YE-OG) | 14 | 14B719 - early production |
| 1 | CPSA9 (VT-OG) | 16 | 14B720 |
| 1 | CPSA9 (VT-OG) | 16 | 14B719 - late production |
| 2 | CPS05 (BU-WH) | 14 | 14B719 - early production |
| 2 | CPSA8 (GY-OG) | 16 | 14B719 - late production |
| 2 | CPSB9 (VT-BN) | 16 | 14B720 |
| 3 | CPS42 (BU-WH) | 14 | 14B719 - early production |
| 3 | CPSA5 (BU-BN) | 16 | 14B719 - late production |
| 3 | CPSB6 (GY-BN) | 16 | 14B720 |
| 4 | CPS43 (GN-WH) | 14 | 14B719 - early production |
| 4 | CPSA6 (VT) | 16 | 14B719 - late production |
| 4 | CPSB7 (YE-GN) | 16 | 14B720 |
| 5 | CPS56 (GN-BN) | 20 | 14B719 - early production |
| 5 | CPSB0 (YE-OG) | 20 | 14B719 - late production |
| 5 | CPSC0 (BU-GY) | 20 | 14B720 |
| 6 | CPS51 (VT-GY) | 20 | 14B719 - early production |
| 6 | RPSB0 (BN-WH) | 20 | 14B720 |
| 6 | RPSB0 (BN-WH) | 20 | 14B719 - late production |
| 7 | RPS12 (YE-VT) | 20 | 14B719 - early production |
| 7 | RPSA7 (WH-VT) | 20 | 14B719 - late production |
| 7 | RPSB5 (WH-BU) | 20 | 14B720 |
| 8 | LPS12 (BN-WH) | 20 | 14B719 - early production |
| 8 | LPSA7 (GN-BU) | 20 | 14B719 - late production |
| 8 | LPSB8 (BN-YE) | 20 | 14B720 |
