Exterior Rear View Mirror, Passenger Side Connector End View (C601)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

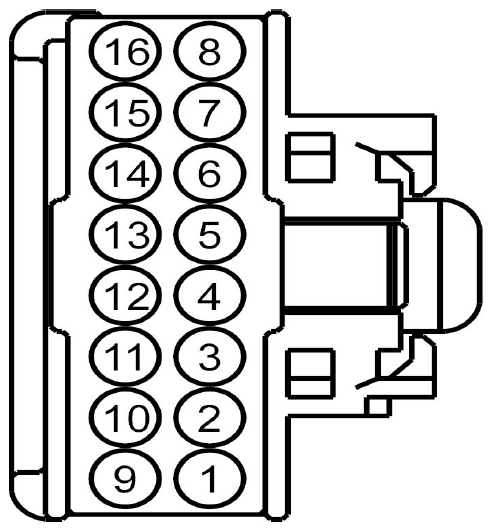

Fig 1: Identifying Passenger Side Exterior Rear View Mirror Connector End View (C601)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPM34 (WH-BN)	22	CTRL MOD. - RIGHT MIRROR VERTICAL
2	CPM31 (YE-GY)	22	CTRL MOD. - RIGHT MIRROR COMMON RETURN	with memory
2	CPM28 (BU-BN)	18	CTRL MOD. - MIRROR COMMON RETURN	without memory
3	CLF07 (GY-OG)	20	CTRL MOD. - CORNERING LAMP RIGHT
4	CPM33 (WH-VT)	22	CTRL MOD. - RIGHT MIRROR HORIZONTAL	with memory
4	CPM31 (YE-GY)	22	CTRL MOD. - RIGHT MIRROR HORIZONTAL	without memory
5	CLN25 (VT)	22	RELAY - PUDDLE LAMPS (KERB ILLUM.)
6	CRD17 (GY)	18	RELAY - HEATER MIRROR
7	GD348 (BK-YE)	18	GROUND - PILLAR C OR QUARTER PANEL RIGHT
8	GD348 (BK-YE)	20	GROUND - PILLAR C OR QUARTER PANEL RIGHT
9	VPM38 (BN-GN)	22	SENSOR - RIGHT MIRROR POSITION # VERTICAL	with memory
9	CAP12 (VT-OG)	18	POLICE - FLASHER REAR	police - late production
10	CAP06 (GY-OG)	20	POLICE - WIGWAG SYNC	police - late production
10	LPM30 (GY-VT)	22	CTRL MOD. - SENSORS MIRROR POSITION FEED	with memory
11	VPM37 (BU-OG)	22	SENSOR - RIGHT MIRROR POSITION # HORIZONTAL	with memory
11	CAP14 (GY-BN)	20	POLICE - BUTTON FUNCTION 1	police - late production
12	GD348 (BK-YE)	18	GROUND - PILLAR C OR QUARTER PANEL RIGHT	base, police - late production
12	RPM30 (YE)	22	CTRL MOD. - SENSORS MIRROR POSITION RETURN	with memory
13	CRB02 (BU-BN)	22	SENSOR - BLINDSPOT WARNING RIGHT HAND # WARNING ALERT
14	CPM02 (BU)	22	CTRL MOD. - FOLD MIRRORS FOLD POSITION
15	*	*	Not Used
16	CPM01 (YE-GN)	22	CTRL MOD. - FOLD MIRRORS DRIVE POSITION

Available Pigtail Kits

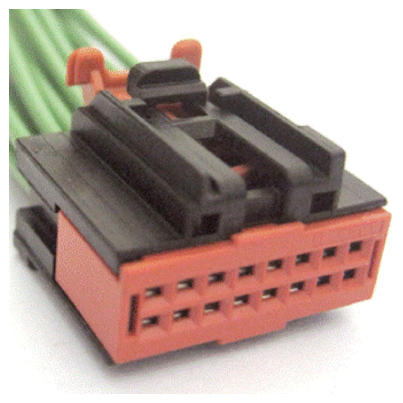

Pigtail Kit Part Number WPT-1152	Service Part Number: 3U2Z-14S411-AJD Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses Mirror - Sideview Mirror - Vanity Overhead Console - Inline (Female) Switch - Multifunction

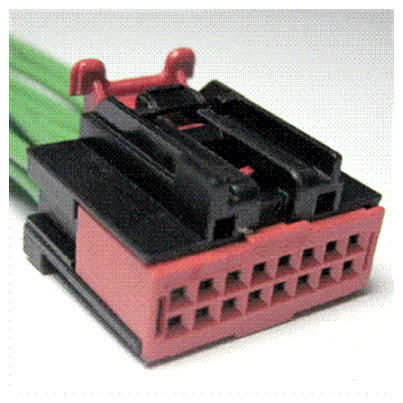

Pigtail Kit Part Number WPT-942	Service Part Number: 3U2Z-14S411-AJC Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses Mirror - Sideview Mirror - Vanity Overhead Console - Inline (Female) Switch - Multifunction Switch - Multifunction (Turn)
