Exterior Mirror Blind Spot (BLIS)/Cross Traffic Alert (CTA) Led, Left Connector End View (C576)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

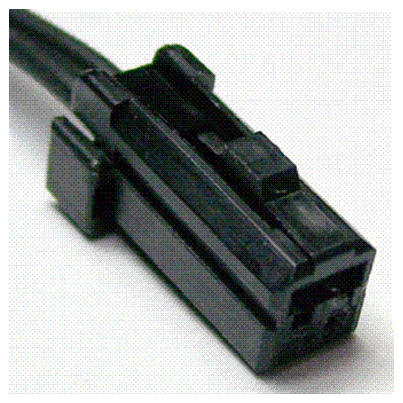

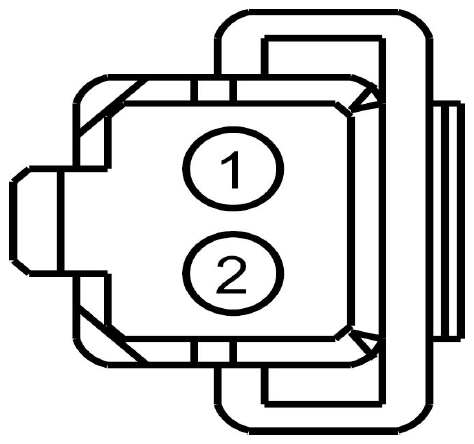

Fig 1: Identifying Left Exterior Mirror Blind Spot/Cross Traffic Alert Led Connector End View (C576)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * (*) | * | SENSOR - ALERT | |
| 2 | * (*) | * | GROUND - COWL SIDE/PILLAR A LEFT |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1197 | Service Part Number: 3U2Z-14S411-PFB Gauge: 20 Pin material: Tin (greased) Cavities: 2 Vehicle Uses
|
| Pigtail Kit Part Number WPT-479 | Service Part Number: 3U2Z-14S411-PFA Gauge: 20 Pin material: Tin Cavities: 2 Vehicle Uses
|
