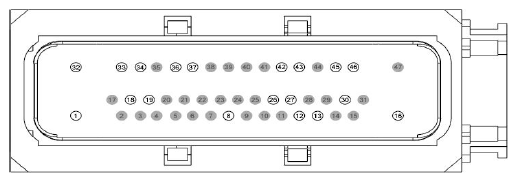

Anti-Lock Brake System (Abs) Module Connector End View (C135)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBB05 (GY-RD) | 10 | FUSE - 5 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | CBB92 (GN-WH) | 20 | FUSE - 92 OR CIRCUIT BREAKER | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 13 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | GD120 (BK-GN) | 10 | GROUND - FENDER FRONT LEFT | |
| 17 | * | * | Not Used | |
| 18 | VCA23 (BU-WH) | 20 | CTRL MOD. - SENSOR YAW ABS/IVD/TC CAN BUS HIGH | |
| 19 | VCA24 (GN-OG) | 20 | CTRL MOD. - SENSOR YAW ABS/IVD/TC CAN BUS LOW | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used | |
| 25 | * | * | Not Used | |
| 26 | VCA36 (YE-GN) | 20 | CTRL MOD. - BRAKE BOOSTER VACUUM POWER | |
| 27 | RCA36 (GY-OG) | 20 | CTRL MOD. - BRAKE BOOSTER VACUUM RETURN | |
| 28 | * | * | Not Used | |
| 29 | * | * | Not Used | |
| 30 | LCA37 (YE-OG) | 20 | CTRL MOD. - SENSOR BRAKE VACUUM SIGNAL | |
| 31 | * | * | Not Used | |
| 32 | SBB43 (BU-RD) | 10 | FUSE - 43 OR CIRCUIT BREAKER | |
| 33 | RCA19 (VT) | 20 | CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT | |
| 34 | VCA05 (GY-VT) | 20 | SENSOR - WHEEL SPEED RIGHT FRONT | |
| 35 | * | * | Not Used | |
| 36 | VCA04 (BU-OG) | 20 | SENSOR - WHEEL SPEED LEFT REAR | |
| 37 | RCA18 (BN-GN) | 20 | CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR | |
| 38 | * | * | Not Used | |
| 39 | * | * | Not Used | |
| 40 | * | * | Not Used | |
| 41 | * | * | Not Used | |
| 42 | RCA20 (BN) | 20 | CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR | |
| 43 | VCA06 (WH-OG) | 20 | SENSOR - WHEEL SPEED RIGHT REAR | |
| 44 | * | * | Not Used | |
| 45 | VCA03 (VT-WH) | 20 | SENSOR - WHEEL SPEED LEFT FRONT | |
| 46 | RCA17 (YE) | 20 | CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT | |
| 47 | * | * | Not Used |
