Heated Oxygen Sensor-Rear (HO2S-Rear) Connector

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2013 Lincoln Navigator, 2013 Lincoln MKZ, 2013 Lincoln MKX, 2013 Lincoln MKT, and 2013 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

The pin numbering for the connector is in reference to the connector lock tab. Not all connector key combinations are shown in illustration.

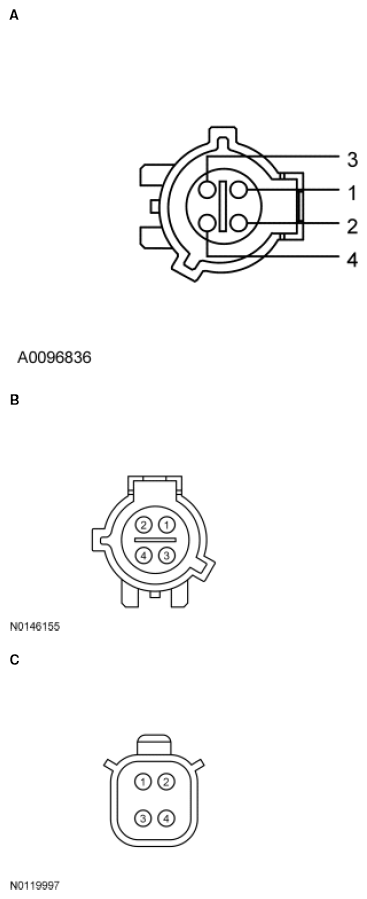

Fig 1: Identifying Heated Oxygen Sensor-Rear (HO2S-Rear) Connector (1 Of 3)
G08291494Courtesy of FORD MOTOR CO.

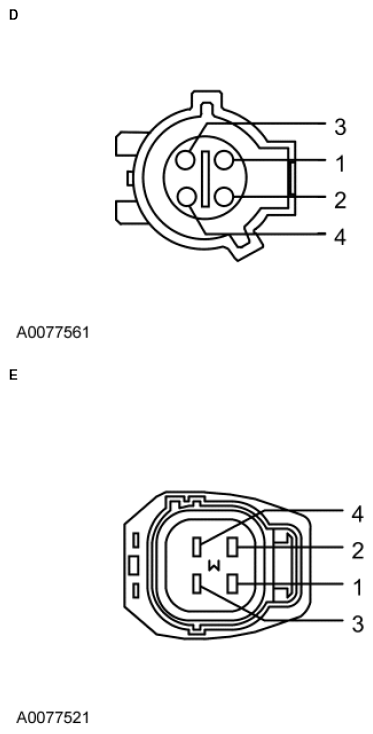

Fig 2: Identifying Heated Oxygen Sensor-Rear (HO2S-Rear) Connector (2 Of 3)
G08291495Courtesy of FORD MOTOR CO.
Fig 3: Identifying Heated Oxygen Sensor-Rear (HO2S-Rear) Connector (3 Of 3)
G08291496Courtesy of FORD MOTOR CO.

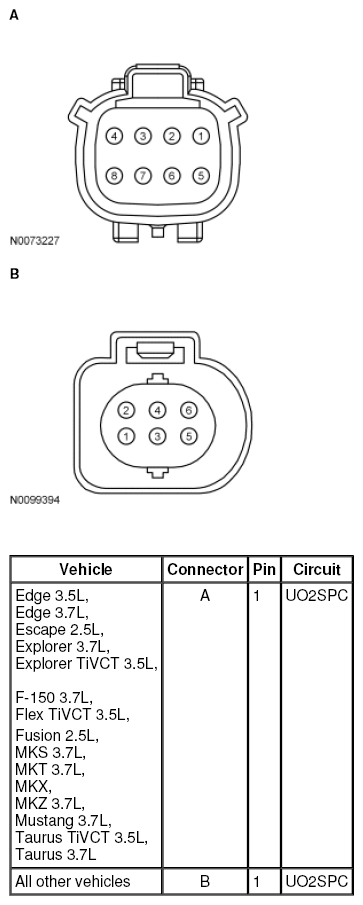

Fig 4: Identifying Universal HO2S-Front Connector
G08291497Courtesy of FORD MOTOR CO.
