Cushion, Manual
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

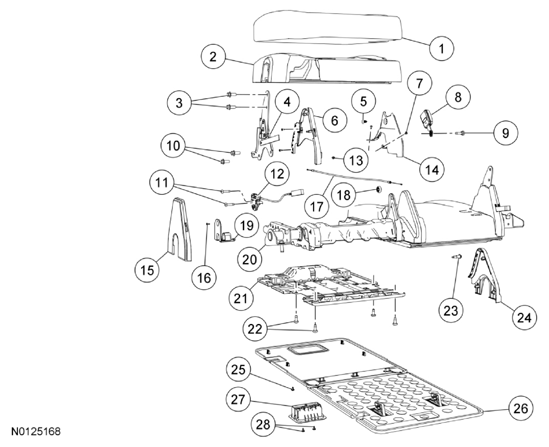

LH shown in illustration, RH similar
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 63805 | Cushion cover | - | - | - |
| 2 | 63841 | Cushion foam pad | - | - | - |
| 3 | W714278 | Backrest latch-to-backrest frame bolts | 83 Nm (61 lb-ft) | - | - |
| 4 | 613D61 | Backrest latch, manual | - | - | - |
| 5 | 56910 | Screw | - | - | - |
| 6 | 67460 | Backrest latch inboard cover | - | - | - |
| 7 | 56910 | Screw (2 required) | - | - | - |
| 8 | 613D48 | Safety belt buckle | - | - | - |
| 9 | W707957 | Safety belt buckle bolt (part of 613D48) | 40 Nm (30 lb-ft) | - | - |
| 10 | W714278 | Backrest latch-to-cushion frame bolts (2 required) | 60 Nm (44 lb-ft) | - | - |
| 11 | W711849 | Floor latch bolts (2 required) | 48 Nm (35 lb-ft) | - | - |
| 12 | 61143 | Floor latch assembly, manual | - | - | - |
| 13 | 56910 | Screw (3 required) | - | - | - |
| 14 | 67460 | Inboard pivot cover | - | - | - |
| 15 | 61349 | Backrest latch outboard cover | - | - | - |
| 16 | 56910 | Screw | - | - | - |
| 17 | 601L60 | Pivot release cable | - | - | - |
| 18 | 613B44 | Bushing | - | - | - |
| 19 | 638A75 | Floor latch cover | - | - | - |
| 20 | 613B90 | Pivot tube assembly, manual | - | - | - |
| 21 | 63160 | Cushion frame | - | - | - |
| 22 | W714278 | Pivot tube assembly bolts (4 required) | 60 Nm (44 lb-ft) | - | - |
| 23 | W714465 | Pivot bolt | 55 Nm (41 lb-ft) | - | - |
| 24 | 67460 | Outboard pivot cover | - | - | - |
| 25 | W504694 | Screw (2 required) | - | - | - |
| 26 | 60513 | Load floor panel | - | - | - |
| 27 | 62432 | Pivot release handle | - | - | - |
| 28 | W604694 | Screw | - | - | - |
