Backrest, Manual
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

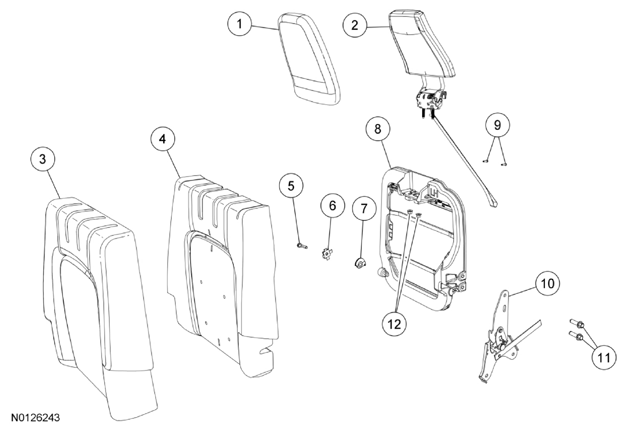

LH shown in illustration, RH similar
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 501A04 | Head restraint cover | - | - | - |
| 2 | 611A08 | Head restraint assembly | - | - | - |
| 3 | 66601 | Backrest cover | - | - | - |
| 4 | 66801 | Backrest foam pad | - | - | - |
| 5 | W714465 | Pivot bolt | 54 Nm (40 lb-ft) | - | - |
| 6 | - | Felt tape | - | - | - |
| 7 | 613B44 | Bushing | - | - | - |
| 8 | 613A39 | Backrest frame | - | - | - |
| 9 | W505575 | Head restraint bolts | 5 Nm (44 lb-in) | - | - |
| 10 | 613D61 | Backrest latch, manual | - | - | - |
| 11 | W714278 | Backrest latch-to-backrest frame bolts (2 required) | 83 Nm (61 lb-ft) | - | - |
| 12 | W520112 | Head restraint-to-backrest frame nuts | 24 Nm (18 lb-ft) | - | - |
