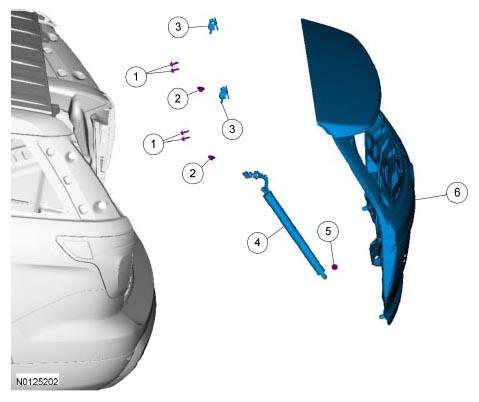

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | N806738 | Liftgate hinge bolt | - | - | 30 Nm (22 lb-ft) |
| 2 | W710675 | Liftgate hinge nut | - | - | 55 Nm (41 lb-ft) |
| 3 | 7842900 | Liftgate hinge | - | - | - |
| 4 | 14B351 | Power liftgate strut and motor | - | - | - |
| 4 | 78406A10-A RH/78406A11-A LH | Manual liftgate strut | - | - | - |
| 5 | W710571 | Liftgate strut stud (2 required each side with manual liftgate) | - | - | 55 Nm (41 lb-ft) |
| 5 | W710571 | Liftgate-to-body strut stud (2 required with power liftgate) | - | - | 55 Nm (41 lb-ft) |
| 5 | W715125 | Body-to-liftgate strut stud (2 required with power liftgate) | - | - | 40 Nm (30 lb-ft) |
| 6 | 7840400 | Liftgate assembly | - | - | - |
