Liftgate/Trunk Module (LTM): Installation
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
- Install the LTM in the vehicle and secure the upper and lower retaining clips.

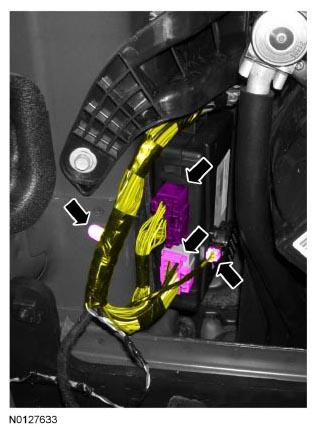

- Connect the LTM
electrical connectors and install the pin-type retainer.

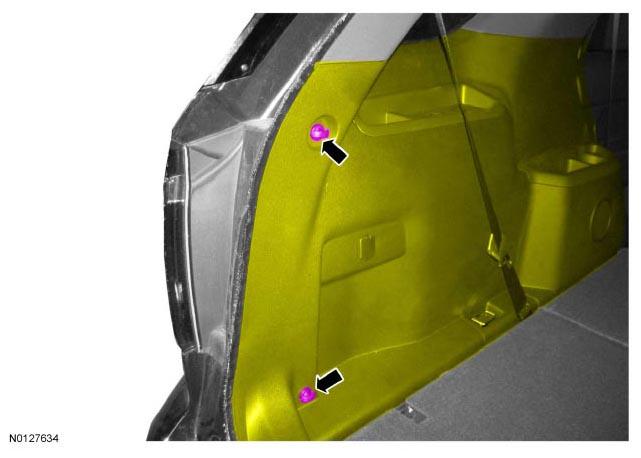

- Install the LH quarter trim panel and the 2 cargo net anchors.
- Install the liftgate opening tread plate.
- Install the liftgate opening weatherstrip.
- Install the LH rear door tread plate.
- Initialize the LTM . Refer to POWER LIFTGATE INITIALIZATION
