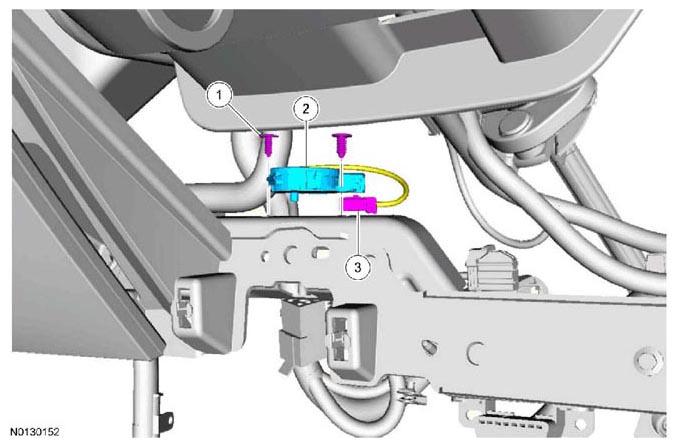

Exploded View

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
G07430977
Item Part Number Description
1 W705635 Parking aid speaker bolts
2 15K864 Parking aid speaker
3 14401 Parking aid speaker electrical connector
