Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Service Part Number |
Description |
Tool Number |
Material Name |
Notes |

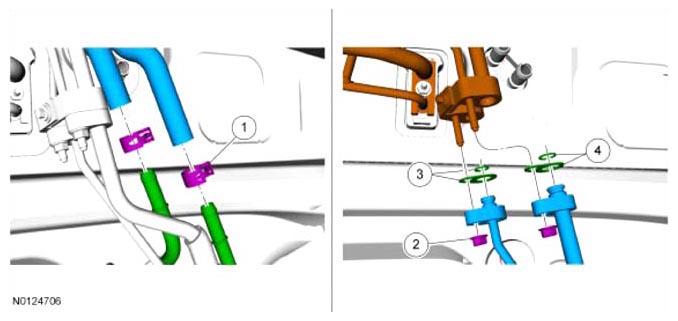

| 1 |
W527359 |
Front auxiliary heater outlet and inlet line heater hose clamp (2 required) |
- |
- |
- |
| 2 |
W520413 |
Front auxiliary evaporator outlet and inlet line fitting nut (2 required) |
- |
- |
15 Nm (133 lb-in) |
| 3 |
19B596 |
O-ring seal and gasket seal kit |
- |
- |
- |
| 4 |
19B596 |
O-ring seal and gasket seal kit |
- |
- |
- |
| Item |
Service Part Number |
Description |
Tool Number |
Material Name |
Notes |

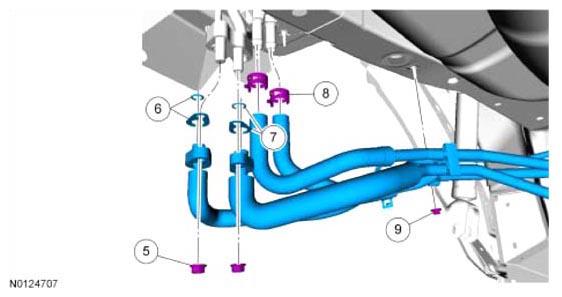

| 5 |
W520413 |
Rear auxiliary evaporator outlet and inlet line fitting nut (2 required) |
- |
- |
15 Nm (133 lb-in) |
| 6 |
19B596 |
O-ring seal and gasket seal kit |
- |
- |
- |
| 7 |
19B596 |
O-ring seal and gasket seal kit |
- |
- |
- |
| 8 |
W527359 |
Rear auxiliary heater outlet and inlet line clamp (2 required) |
- |
- |
- |
| 9 |
W707137 |
Rear auxiliary line bracket nut |
- |
- |
5 Nm (44 lb-in) |
| Item |
Service Part Number |
Description |
Tool Number |
Material Name |
Notes |

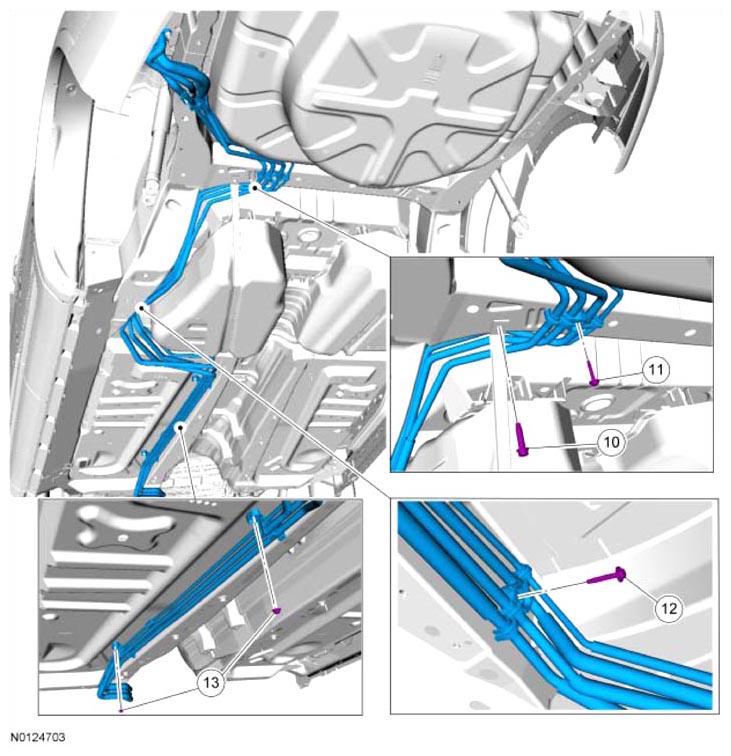

| 10 |
N811781 |
Fuel tank strap bolt |
- |
- |
35 Nm (26 lb-ft) |
| 11 |
W505427 |
Auxiliary line bracket bolt |
- |
- |
5 Nm (44 lb-in) |
| 12 |
W505427 |
Auxiliary line bracket bolt |
- |
- |
5 Nm (44 lb-in) |
| 13 |
W707137 |
Auxiliary line bracket nut (2 required) |
- |
- |
5 Nm (44 lb-in) |
