Component Location
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

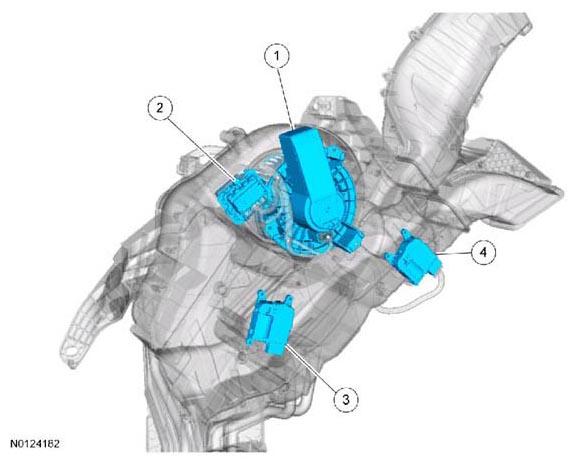

| Item |
Description |
| 1 |
Auxiliary blower motor |
| 2 |
Auxiliary blower motor speed control |
| 3 |
Auxiliary temperature blend door actuator |
| 4 |
Auxiliary mode door actuator |

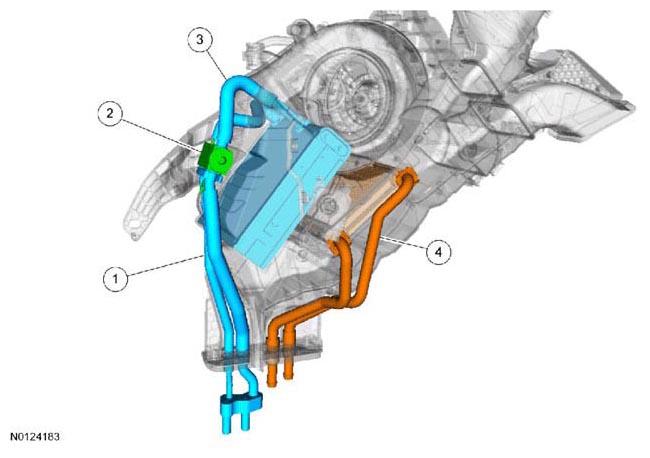

| Item |
Description |
| 1 |
Auxiliary evaporator outlet and inlet jumper lines |
| 2 |
Auxiliary TXV |
| 3 |
Auxiliary evaporator core |
| 4 |
Auxiliary heater core |
