Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

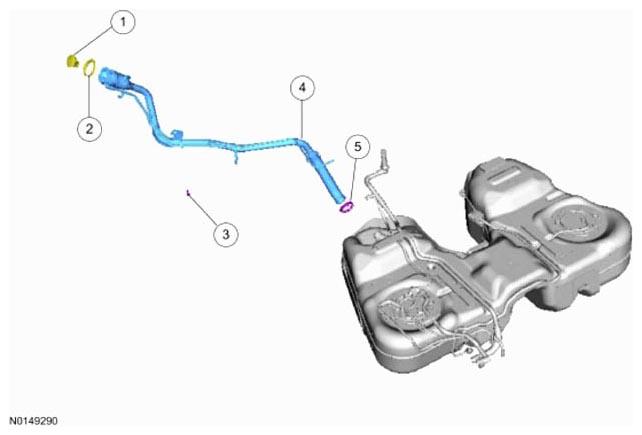

| Item |
Service Part Number |
Description |
Torque |
Material Name |
Notes |
| 1 |
9C268 |
Fuel tank filler pipe locking cap (optional) |
- |
- |
- |
| 2 |
9K072 |
Fuel tank filler pipe information bezel |
- |
- |
- |
| 3 |
W505255 |
Fuel tank filler pipe bolt |
9 Nm (80 lb-in) |
- |
- |
| 4 |
9034 |
Fuel tank filler pipe assembly |
- |
- |
- |
| 5 |
W525936 |
Fuel tank filler pipe hose clamp |
3 Nm (27 lb-in) |
- |
- |

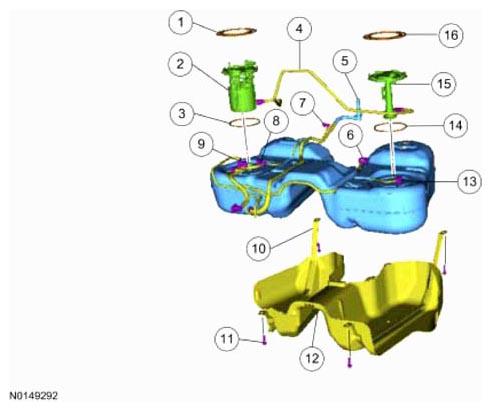

| Item |
Service Part Number |
Description |
Torque |
Material Name |
Notes |
| 1 |
9C385 |
FP
assembly lock ring |
- |
- |
- |
| 2 |
9H307 |
FP
assembly |
- |
- |
- |
| 3 |
9276 |
FP
assembly O-ring seal |
- |
- |
- |
| 4 |
9324 |
Internal fuel tube |
- |
- |
- |
| 5 |
- |
Fresh air hose vent cap |
- |
- |
- |
| 6 |
9A089 |
Fuel tank wire harness electrical connector (part of 14407) |
- |
- |
- |
| 7 |
- |
Fuel vapor tube assembly-to-fuel tank filler pipe recirculation tube quick connect coupling (part of 9C047) |
- |
- |
- |
| 8 |
- |
Fuel tank jumper tube-to-Fuel Pump (FP) assembly quick connect coupling |
- |
- |
- |
| 9 |
- |
FP
assembly electrical connector (part of 14407) |
- |
- |
- |
| 10 |
W716198 |
Fuel tank strap (2 required) |
35 Nm (26 lb-ft) |
- |
- |
| 11 |
9055 |
Fuel tank strap bolt (4 required) |
- |
- |
- |
| 12 |
9A031 |
Fuel tank heat shield |
- |
- |
- |
| 13 |
- |
Fuel level sensor electrical connector (part of 14407) |
- |
- |
- |
| 14 |
9276 |
Fuel level sensor O-ring seal |
- |
- |
- |
| 15 |
9275 |
Fuel level sensor |
- |
- |
- |
| 16 |
9C385 |
Fuel level sensor lock ring |
- |
- |
- |
- For additional Information, refer to the appropriate procedures in this information.
