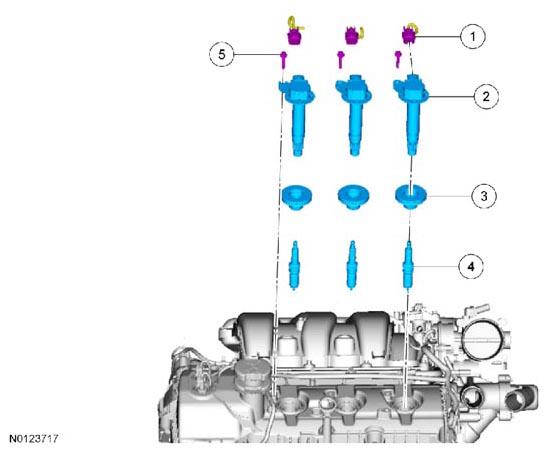

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Left Hand (LH) shown in illustration, RH similar.
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Ignition coil-on-plug electrical connector (part of 12A581) (3 required) | - | - | - |
| 2 | 12029 | Ignition coil-on-plug (3 required) | - | Silicone Brake Caliper Grease and Dielectric Compound | - |
| 3 | 12025 | Ignition coil-on-plug seal (3 required) | - | - | - |
| 4 | 12405 | Spark plug (3 required) | 15 Nm (133 lb-in) | - | - |
| 5 | W714507 | Ignition coil-on-plug bolt (3 required) | 7 Nm (62 lb-in) | - | - |
