3.5L Ti-VCT, 3.7L Ti-VCT FWD
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

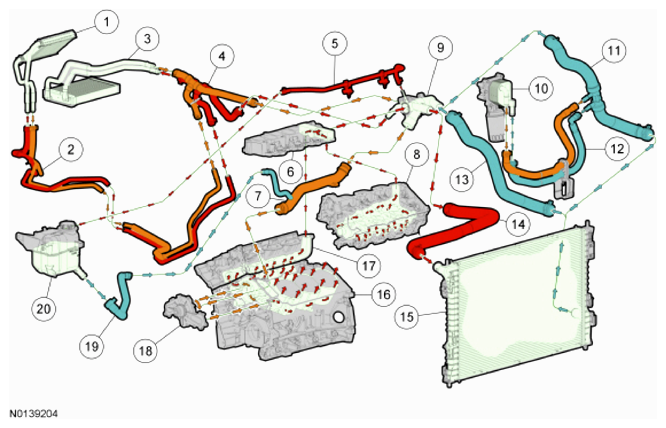

| Item | Part Number | Description |
|---|---|---|
| 1 | 18476 | Auxiliary heater core |
| 2 | 18K470 | Auxiliary heater tube assembly |
| 3 | 18476 | Heater core |
| 4 | 18472 | Heater hose assembly |
| 5 | 8276 | Thermostat housing-to-degas bottle hose |
| 6 | 9424 | Lower intake manifold |
| 7 | 9N271 | Coolant inlet tube |
| 8 | 6049 | LH cylinder head |
| 9 | 8A586 | Thermostat housing |
| 10 | 6881 | Oil cooler (trailer tow equipped vehicles only) |
| 11 | 8286 | Lower radiator hose (trailer tow equipped vehicles only) |
| 12 | 8075 | Oil cooler hose assembly (trailer tow equipped vehicles only) |
| 13 | 8286 | Lower radiator hose |
| 14 | 8260 | Upper radiator hose |
| 15 | 8005 | Radiator |
| 16 | 6010 | Cylinder block |
| 17 | 6049 | RH cylinder head |
| 18 | 8501 | Coolant pump |
| 19 | 8C289 | Degas bottle-to-coolant inlet tube hose |
| 20 | 8A080 | Degas bottle |
