3.5L GTDI - RH

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

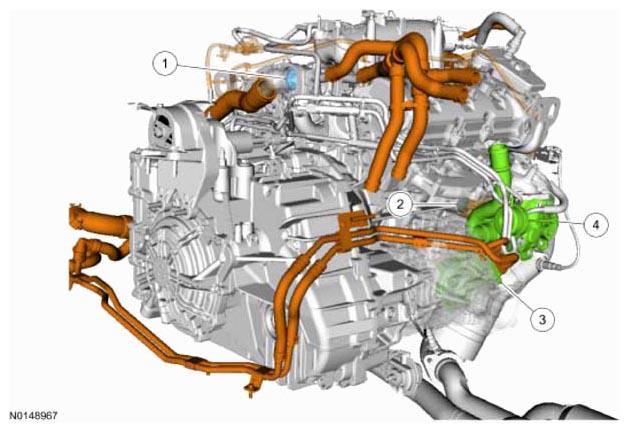

G09087192
Item Part Number Description
1 - Thermostat
2 - Block heater
3 - PTU  cooler
4 - RH turbocharger
