3.5L GTDI - LH

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

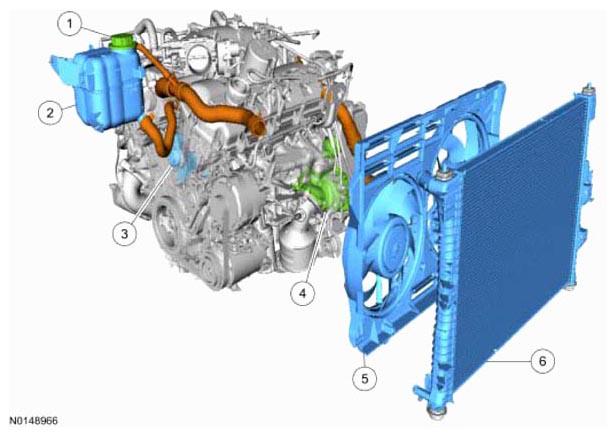

G09087191
Item Part Number Description
1 - Pressure relief cap
2 - Degas bottle
3 - Coolant pump
4 - LH turbocharger
5 - Cooling fan motor and shroud
6 - Radiator
