Liftgate Lock Cylinder: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in SERVICE INFORMATION . Failure to follow this instruction may result in serious personal injury.
  1. Remove the latch. Refer to LIFTGATE LATCH - POWER .

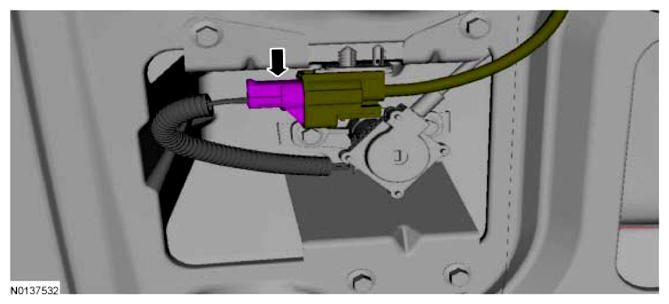

  2. G09091397
    • To install, tighten to 7 Nm (62 lb-in).

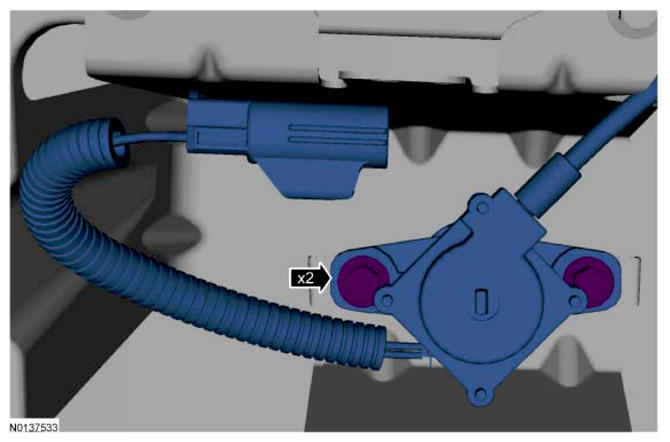

      G09091398
