Liftgate Latch - Power: Removal
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Before beginning any service procedure in this article, refer to Safety Warnings in
SERVICE INFORMATION
. Failure to follow this instruction may result in serious personal injury.
- Remove the liftgate trim panel. REFER to LIFTGATE TRIM PANEL .
- Disconnect the liftgate latch electrical connector.
- Remove the 2 liftgate door handle moulding bolts.
- Disconnect the liftgate release switch.
- Depress the 2 tabs and remove the liftgate door handle moulding.

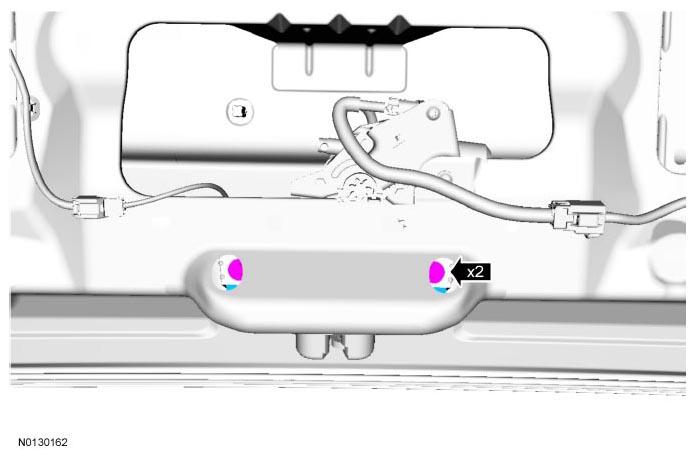

- Remove the 4 liftgate latch bolts and the liftgate latch.
- To install, tighten to 9 Nm (80 lb-in).
