Exploded View

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

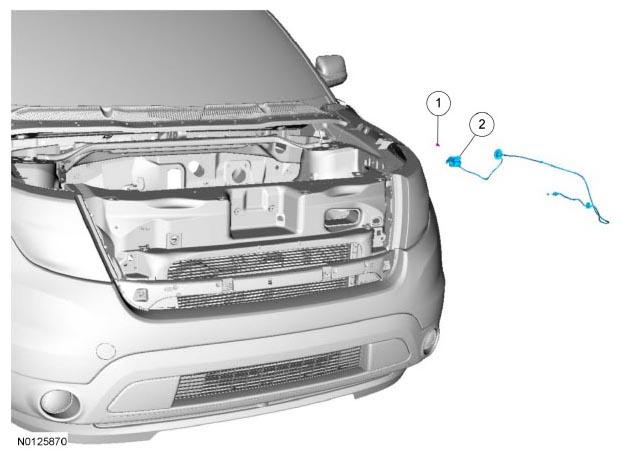

G07429401
Item Service Part Number Description Tool Number Material Name Notes
1 W505424 Hood latch release handle screw - - -
2 16916 Hood latch release handle and cable - - -
