Wiper Blade - Rear: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Lifting the wiper arm beyond its maximum angle may result in damage to the wiper arm or the wiper arm heel.
NOTE: Allowing the wiper arm to contact the glass may result in damage to the glass.

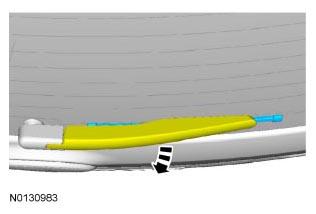

  1. Remove the rear wiper blade.
    • Using one hand, hold the rear wiper blade against the rear liftgate glass.
    • Using the other hand, pull the rear wiper pivot arm away from the rear wiper blade.
      G07429574
