Washer Pump: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Carefully read cautionary information on product label. For emergency medical information seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

NOTE: When installing a new washer pump, be careful not to damage the rubber grommet.

NOTE: To prevent spilling washer fluid, drain the washer reservoir before washer pump removal.

Remove the RF fender splash shield. REFER to FENDER SPLASH SHIELD .
NOTE: Front bumper removed for clarity.

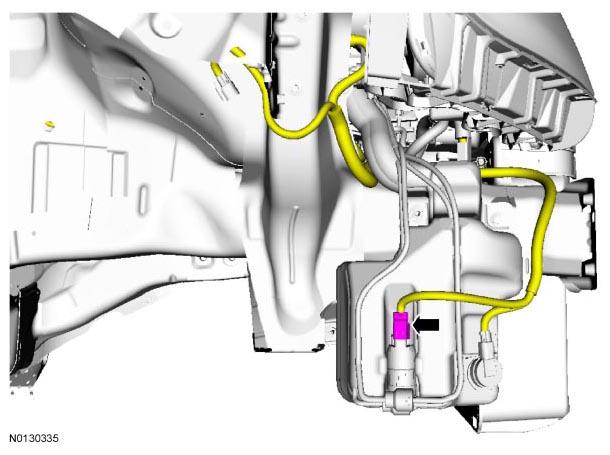

Disconnect the washer pump electrical connector.
NOTE: Front bumper removed for clarity.

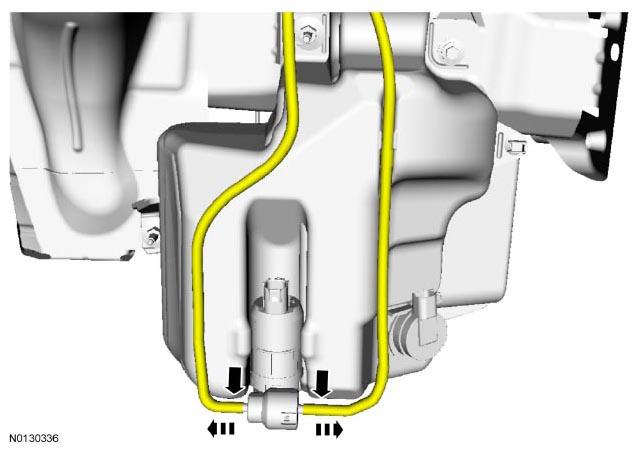

Disconnect the washer hoses.
NOTE: Front bumper removed for clarity.

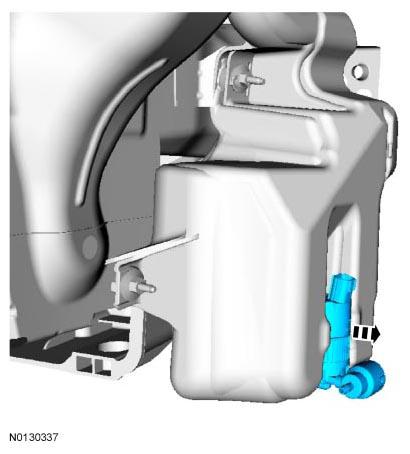

Remove the washer pump.
