Special Tool(s)

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Lock Ring Wrench
310-123

NOTE: This procedure is for diesel applications only. Aft tank shown others similar.

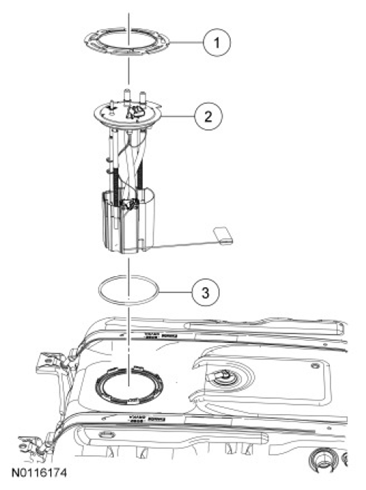

Fig 1: Identifying Fuel Pickup Assembly, Lock Ring And O-Ring Seal

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9C385	Fuel pickup assembly lock ring
2	9275	Fuel pickup assembly
3	9276	Fuel pickup assembly O-ring seal
