Cowl Panel Grille: Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Install the cowl panel grille.

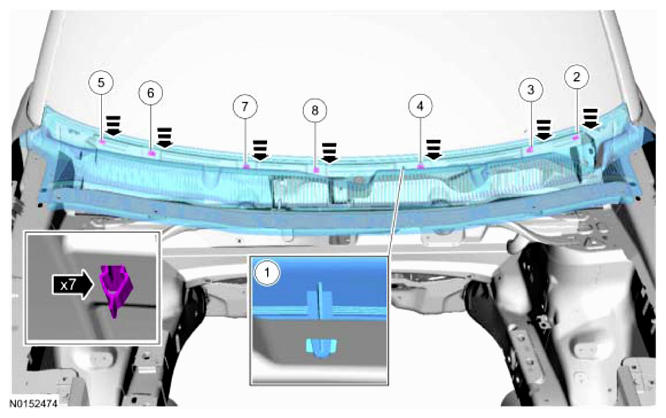

1. Position the cowl panel grille onto the vehicle and align the locator on the bottom of the cowl panel grille.
2. NOTE: Installation of the clips must be done in the specific order as indicated, otherwise damage to the cowl panel grille may result.

  Press the 7 upper locking clips into place.

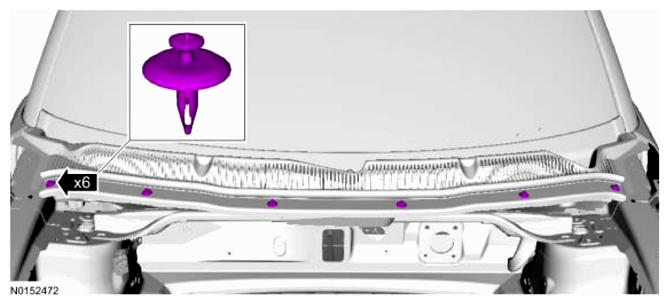

Install the 6 pin-type retainers.
Install the wiper arms. REFER to WIPER PIVOT ARM - FRONT
